Product Details
Place of Origin: China
Brand Name: QiaoDa
Certification: YES
Model Number: LS215
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiable price
Packaging Details: Consultation with customers
Delivery Time: 15 word days
Payment Terms: T/T
Supply Ability: 100 units per month
Motor Power: |
Customized |
Service: |
Design, Manufacturing, Sales |
Delivery Capacity: |
2-30T |
Spare Parts: |
Supply All Using Life |
Applicable Industry: |
Cement, Grain, Steel, Power Plants |
Conveying Speed: |
0.4-0.7m/s |
Color: |
According To Customer Requirements |
Height: |
Varies |
Type: |
Mechanical Equipment |
Motor Power: |
Customized |
Service: |
Design, Manufacturing, Sales |
Delivery Capacity: |
2-30T |
Spare Parts: |
Supply All Using Life |
Applicable Industry: |
Cement, Grain, Steel, Power Plants |
Conveying Speed: |
0.4-0.7m/s |
Color: |
According To Customer Requirements |
Height: |
Varies |
Type: |
Mechanical Equipment |

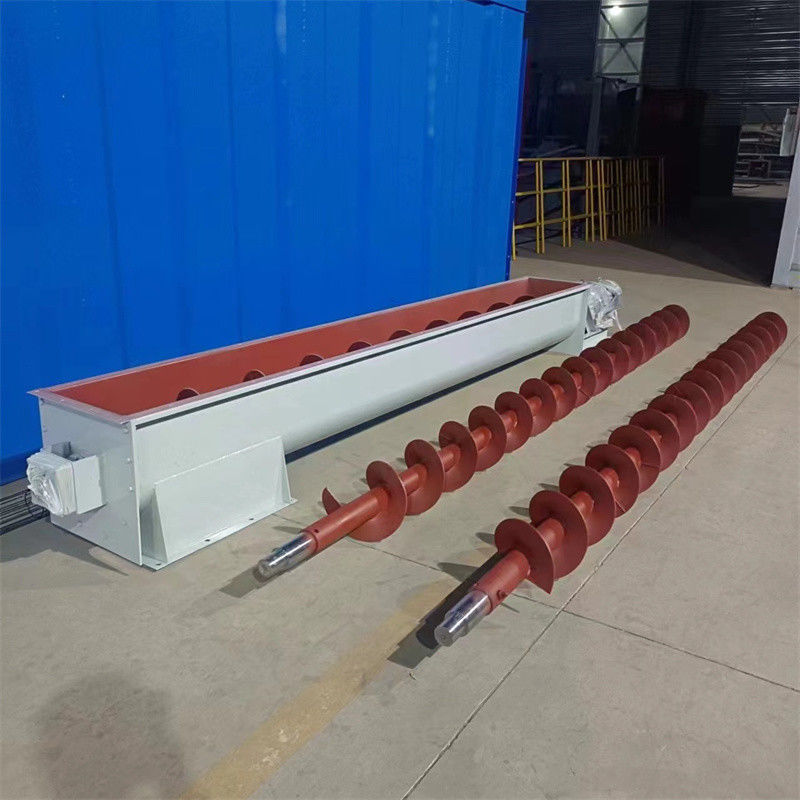

U-screw conveyor is mainly used for horizontal conveying and vertical lifting of various loose
materials such as powder, granular and small block. From the Angle of conveying material
displacement direction, screw conveyor is divided into horizontal screw conveyor and vertical
screw conveyor two types. Screw conveyors are used to transport powder or solid particles
with high temperature and other chemical and building materials products. Screw conveyor
is all made of steel, screw conveyor inside is a conveyor pipe, the blade into a spiral welded
on the conveyor pipe.
When U-type screw conveyor works, the motor drives the rotating spiral blade to transport
the material. The spiral blade welded on the rotating shaft of the screw conveyor has a solid
surface type, belt surface type, blade surface type and other types according to the different
conveying materials. The force that makes the material not rotate with the screw conveyor
blade is the material's own weight and the friction resistance of the screw conveyor housing
to the material.
Screw conveyor is suitable for horizontal or inclined conveying powder, granular and small
block materials, such as coal, ash, slag, cement, grain, etc., the material temperature is
less than 200℃. Such as building materials, chemical, electric power, metallurgy, coal coal
, grain and other industries. It is not suitable for conveying materials that are easy to
deteriorate, sticky and easy to caking.
规格型号 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 |
Spiral diameter (mm) |
100 | 200 | 250 | 200 | 400 | 500 | 630 | 800 |
Screw pitch (mm) |
100 | 200 | 250 | 315 | 355 | 400 | 450 | 500 |
Rotational speed (R/min) |
2.2 | 90 | 90 | 75 | 75 | 60 | 60 | 45 |
Delivery capacity (m³/h) |
1.9 | 11 | 22 | 36 | 75 | 93.1 | 160 | 223 |
power PD=10CM (kw) |
1 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 |
3. Q&A
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Q: What certificates do you have?
A: SO / SGS
