Product Details
Place of Origin: China
Brand Name: QiaoDa
Certification: YES
Model Number: NE15
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $5800
Packaging Details: Consultation with customers
Delivery Time: 15 word days
Payment Terms: T/T
Supply Ability: 20 units per month
Features: |
Durable |
Size: |
Customized |
Structure: |
Integrated |
Power: |
As Required |
Model: |
NE15 |
Lifting Capacity: |
200 |
Delivery Capacity: |
200 |
Tape Speed: |
15 |
Power Supply: |
220V/380V |
Maintenance: |
Easy |
Conveying Speed: |
0.4-0.7m/s |
Frame Material: |
Steel |
Warranty: |
1 Year |
Features: |
Durable |
Size: |
Customized |
Structure: |
Integrated |
Power: |
As Required |
Model: |
NE15 |
Lifting Capacity: |
200 |
Delivery Capacity: |
200 |
Tape Speed: |
15 |
Power Supply: |
220V/380V |
Maintenance: |
Easy |
Conveying Speed: |
0.4-0.7m/s |
Frame Material: |
Steel |
Warranty: |
1 Year |

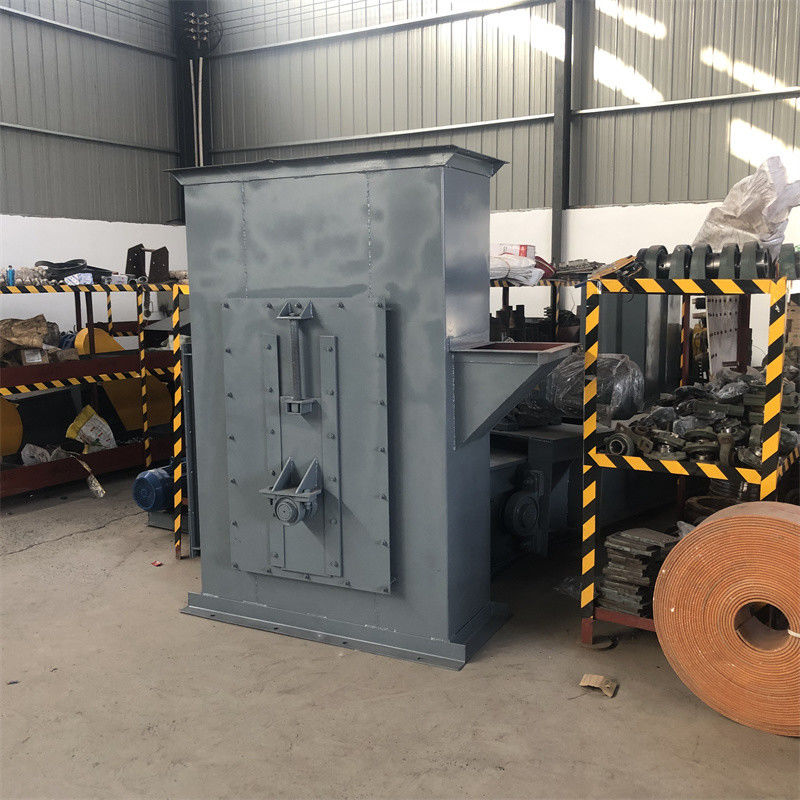

Industrial graphite production line NE bucket elevator is a continuous conveying machine that uses a series of
hoppers uniformly fixed on the endless traction members to vertically lift materials. Bucket elevator uses a series
of hoppers fixed on the traction chain or tape to transport bulk materials upward in the vertical or near-vertical
direction. Divided into ring chain, plate chain and belt three. The hopper scoops the material from the storage
below, and as the conveyor belt or chain is raised to the top, it flips down around the jacking wheel, and the
bucket elevator dumps the material into the receiving tank. The transmission belt of the bucket elevator with
transmission is generally made of rubber belt, which is installed on the transmission drum under or above and
the reversing drum above and below. Chain driven bucket elevators are generally equipped with two parallel
transmission chains, with a pair of transmission sprockets above or below, and a pair of directional sprockets
below or above. Bucket elevators are generally equipped with a housing to prevent dust from flying in the
bucket elevator.
Model number | TID160 | TD250 | TD315 | TD400 | |||||||||||||
Hopper form | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | |
Delivery capacity(m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 | |
bucket(mm) | 160 | 250 | 315 | 400 | |||||||||||||
A surname(L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 | |
Pitch of buckets(mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | |||||||||
bandwidth(mm) | 200 | 300 | 400 | 500 | |||||||||||||
Bucket speed(m/s) | 1.4 | 1.6 | 1.6 | 1.8 | |||||||||||||
Material quantity particle(mm) | 25 | 35 | 45 | 55 | |||||||||||||
Model number | TID500 | TD630 | TD160 | TD250 | TD350 | TD450 | |||||||||||
Hopper form | Q | h | zD | Sd | h | zD | Sd | Q | s | Q | S | Q | S | Q | S | ||
Delivery capacity(m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | ||
bucket(mm) | 500 | 630 | 160 | 250 | 350 | 450 | |||||||||||
A surname(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | ||
Pitch of buckets(mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | ||||||||||
bandwidth(mm) | 500 | 700 | 200 | 300 | 400 | 500 | |||||||||||
Bucket speed(m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | |||||||||||
Material quantity particle(mm) | 60 | 70 | 25 | 35 | 45 | 55 |
