Mine Cyclone Separator Stainless Steel Cyclone Separator

Product Details

Place of Origin: China HeBei

Brand Name: HeBei QiaoDa

Certification: YES

Model Number: ∅500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $180 - $3000

Packaging Details: Communicate with customers

Delivery Time: 15 work days

Payment Terms: T/T

Supply Ability: 30 units per month

Get Best Price
Highlight:

Stainless Steel Cyclone Separator

,

Mine Cyclone Separator

,

Stainless Steel Mine Cyclone Separator

Selected Type:
Cylinder
Warranty:
3 Year
Shape:
Rotational Centrifugal Force
Filtering Rate:
1-2m/min
Service Lifemore Than 10 Years:
5-10 Years
Minimum Particle Size:
50Micron
Customizable:
Accept
Control System:
Power-driven
Air Pressure:
Tailored-made
Voltage:
380V-480V
Applicable Condition:
Mine Iron And Steel Casting Coking Power Plant Carpentry
Selected Type:
Cylinder
Warranty:
3 Year
Shape:
Rotational Centrifugal Force
Filtering Rate:
1-2m/min
Service Lifemore Than 10 Years:
5-10 Years
Minimum Particle Size:
50Micron
Customizable:
Accept
Control System:
Power-driven
Air Pressure:
Tailored-made
Voltage:
380V-480V
Applicable Condition:
Mine Iron And Steel Casting Coking Power Plant Carpentry

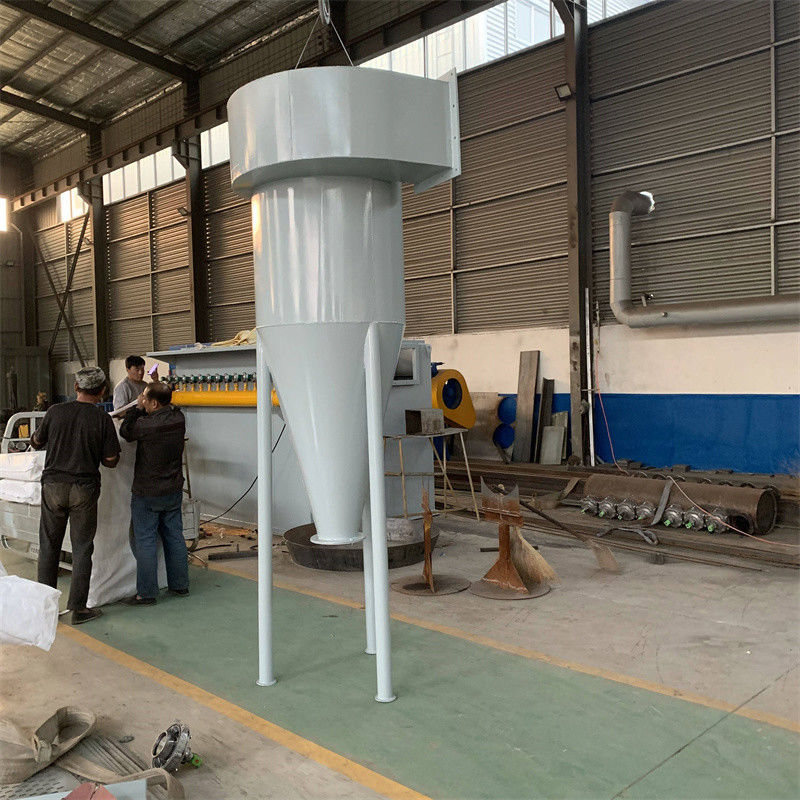

Mine Cyclone Separator Stainless Steel Cyclone Separator

Mine stainless steel cyclone dust collector is mainly composed of intake pipe, cyclone,

cyclone chamber, bottom barrel body, support bracket and so on. Among them, the

intake pipe and the bottom barrel body are the parts of the contact material, and are

made of high-quality stainless steel materials to ensure its strength and stability.

Made of stainless steel, it has the characteristics of high strength, corrosion

resistance and high temperature resistance, and can adapt to a variety of harsh

working environments, such as high temperature, high humidity, corrosive gas

and other occasions.
When the gas containing dust and particulate matter enters the dust collector

through the air inlet, the airflow speed suddenly decreases and rotates, forming

a strong centrifugal force. Under the action of centrifugal force, the heavier

particles are thrown to the outer wall and fall along the wall, and finally

discharged through the ash discharge port, while the lighter gas is discharged

through the cyclone pipe, so as to achieve the purpose of dust removal.

Model number

Inlet wind speed

12(m/s)

Inlet wind speed

15(m/s)

Inlet wind speed

18(m/s)

Measure the air volume

(m³/h)

Measure the air volume

(m³/h)

Measure the air volume

(m³/h)

CLT300 670 830 1000
CLT400 1180 1480 1780
CLT500 1860 2320 2780
CLT600 2670 3340 4000
CLT700 3630 4540 5440
CLT800 4750 5940 7130
CLT1000 7990 10000 12000
CLT1200 11600 14600 17500
CLT1500 17000 21260 25500
CLT2000 30000 37800 45300
CLT2500 47300 59000 70900
CLT300X2 1340 1660 2000
CLT400X2 2360 2960 3560
CLT500X2 3720 4640 5560
CLT600X2 5340 6680 8000
CLT700X2 7260 9080 10880
CLT800X2 9500 11880 14260
