Product Details
Place of Origin: Hebei, China
Brand Name: QiaoDa
Certification: YES
Model Number: Tile Forming Machine
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $7999
Packaging Details: Mutual agreement
Delivery Time: 20 work days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10 units per month
Material: |
Carbon Steel |
Compatibility: |
Suitable For Various Tile Sizes |
Size: |
According To The Drawing |
Voltage: |
380V |
Tile Type: |
Colored Steel |
Rolling Thinckness: |
0.3-0.8mm |
Power Source: |
Industrial Electricity |
Manufacturer: |
Hebei Qiaoda Environmental Protection Technology Co., LTD |
Type: |
Tile Forming Machine |
Feeding Width: |
Other |
Material: |
Carbon Steel |
Compatibility: |
Suitable For Various Tile Sizes |
Size: |
According To The Drawing |
Voltage: |
380V |
Tile Type: |
Colored Steel |
Rolling Thinckness: |
0.3-0.8mm |
Power Source: |
Industrial Electricity |
Manufacturer: |
Hebei Qiaoda Environmental Protection Technology Co., LTD |
Type: |
Tile Forming Machine |
Feeding Width: |
Other |

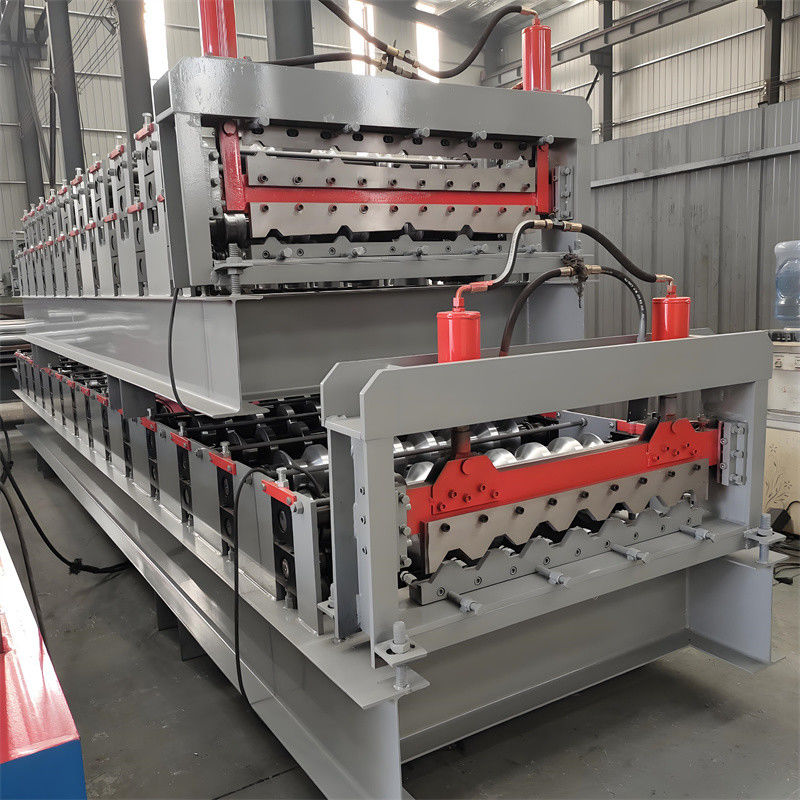

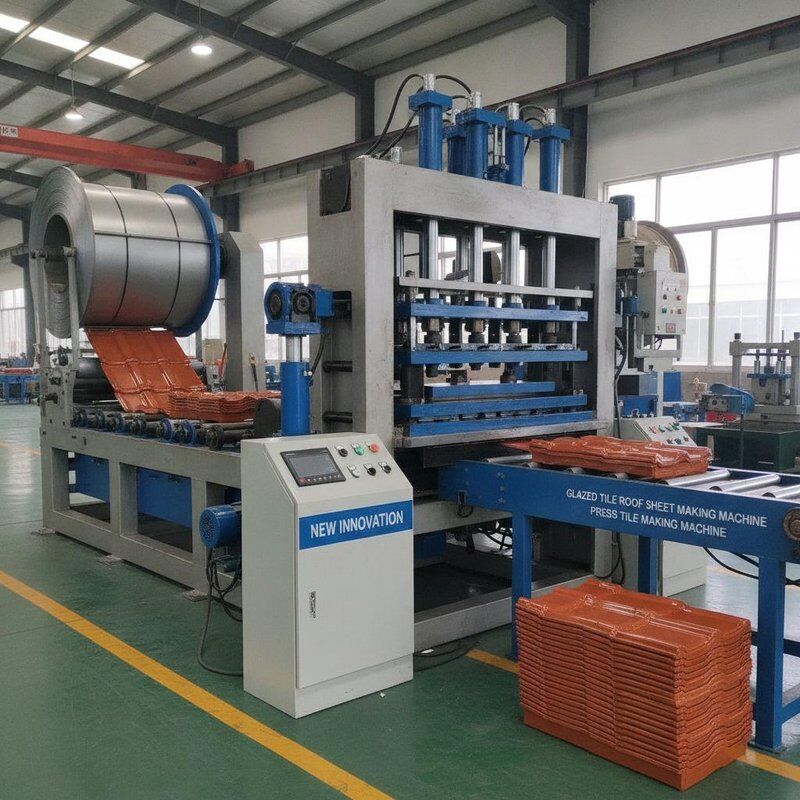

New Innovation Glazed tile Sheet Roof press tile Making Machine
The production line uses galvanized steel plate or different colors of color steel plate or
aluminum plate as raw materials, the production of products for the construction of the
external roof and wall panels and internal decorative panels or ceilings, etc., so that it
increases the beauty of the roof or wall, and durability. The production line of glazed tile
press tile machine has no production length limit, and can set multiple sets of different
data on the computer controller according to the construction requirements. After one
key "confirm", the equipment automatically produces finished products of different
lengths according to the data set by the computer. The surface of the finished product
produced by the glazed tile press production line is smooth, smooth and without
scratches, which is convenient for construction and installation.
No. | Roofing sheet making Machine parameters | |
1 | Suitable to process | Color alu-zinc steel coil |
2 | Roller | 18Rows |
3 | Dimensions | 9*1.55*1.8m |
4 | Motor Power | 4KW |
5 | Pump Station Motor | 4Kw. |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Productivity | 10-15m/min |
8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
9 | Diameter ofthe roller | φ70mm |
10 | Weight | About 4500kgs |
11 | Mainstructure of the machine | 350H beams |
12 | Processing precision | Within 1.0mm |
13 | Side panel of machine | 16mm |
14 | Chain Wheel and Cycle Chain | 1 Inch |
15 | Voltage | 380V 50Hz 3phases or as customer's need |
16 | Control system | PLC control (Delta) |
17 | Frequency system | Delta |
18 | Drive mode | Motor driver |
