Belt Machine Single Pulse Dust Collector The Air Volume Is Large

Product Details

Place of Origin: China HeBei

Brand Name: QiaoDa

Certification: YES

Model Number: DMC-96

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3,500 - $10000

Packaging Details: Communicate with customers

Delivery Time: 12 work days

Payment Terms: T/T

Supply Ability: 20 units per month

Get Best Price
Highlight:

single pulse dust collector

,

Q235 pulse dust collector

,

single pulse jet dust extractor

Structure:
Bag House
Filter Speed:
1.20 M/min
Air Pressure:
Tailored
Usage:
Dust Filtration,air Purification
Filter Area:
5000 Square Feet
Customized:
Accept
Power:
7.5KW
Equipment Material:
Q235
Application:
Used In Coking, Cement, Smelting, Casting, Chemical Industry, Power Plant
Emission:
<20 Mg/ M3
Weight:
According To The Drawing
Airflow:
5000CFM
CE Certification:
YES
Structure:
Bag House
Filter Speed:
1.20 M/min
Air Pressure:
Tailored
Usage:
Dust Filtration,air Purification
Filter Area:
5000 Square Feet
Customized:
Accept
Power:
7.5KW
Equipment Material:
Q235
Application:
Used In Coking, Cement, Smelting, Casting, Chemical Industry, Power Plant
Emission:
<20 Mg/ M3
Weight:
According To The Drawing
Airflow:
5000CFM
CE Certification:
YES

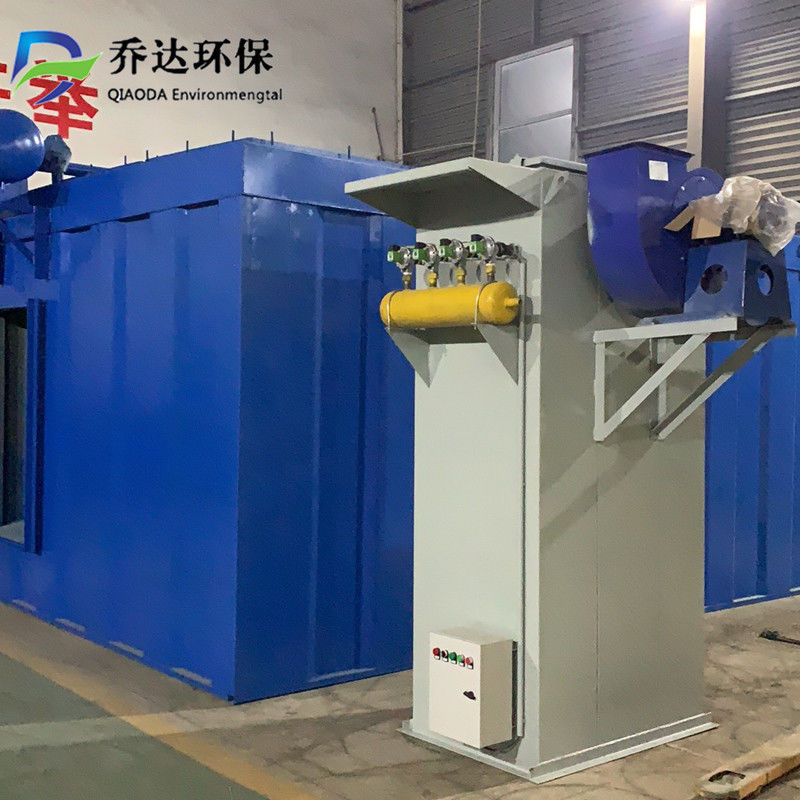

Belt Machine Single Pulse Dust Collector The Air Volume Is Large

DMC-96 type single pulse dust collector box is generally welded from carbon steel, and the

thickness of the plate can be 3mm4mm5mm to meet different pressure strengths. dmc-96

pulse bag type dust collector box sealing performance is particularly good, simple structure,

convenient installation of filter bag, the use of upper suction bag, as long as the skeleton is

pulled out, the dirty bag is thrown into the ash bucket, there is an entry hole to remove, while

installing a new filter bag (polyester needle felt).
Working principle of single pulse dust collector: Under the action of the main fan of the system,

the dust-containing gas enters the box from the inlet of the dust collector, and the coarse dust

particles fall directly into the bin under the action of inertia and self-weight, which plays the role

of pre-collecting dust. Other lighter dust is blocked on the outer surface of the filter cartridge

with the air flow, and the filtered purified gas is discharged by the air after the box. With the

continuous filtration conditions, more and more dust accumulates on the outer surface of the

filter bag, and the resistance of the equipment will also increase (generally set to 1500PA).

In order to ensure the continuous normal operation of the system, the pulse valve will be

periodically sprayed by the controller to clean the ash. The injection time and cycle can be

set and adjusted according to the actual needs of customers through the pulse controller.

See the controller manual for details.

Equipment type DMC-96 Material: carbon steel or stainless steel
Filter area 51.2m2
Dust collector cloth bag 96PCS Polyester needle felt covered
Dust collector bag cage 96PCS 8 bars 3.5 wire surface spray treatment
Electromagnetic pulse valve 12PCS 24V
Star discharger 1PCS Material: Cast iron 1.5KW
Inlet size 500
Dust collector fan 1PCS 7.5KW
Equipment dimensions 2120mm×1440mm×4500mm
