Single Arm Blue Mobile Portable Dust Collector Welding Fume Extractor

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE/ISO

Model Number: QD-HY1500D/2200D/3000D

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 500~900/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

mobile portable dust collector

,

portable dust collector welding

,

mobile welding fume extractor

Cleaning Type:
Pulse Jet Cleaning/Manual
Power:
1.5~3.0kw
Keyword:
Welding Fume Dust Collector
Color:
Blue/gray/white/customized
Certification:
CE SGS ISO Certificate
Voltage:
380V, 50hz(optional)
Air Valume:
1500~3000m3/h
Type:
Industrial Dust Collector
Port:
TIANJIN
Application Field:
Chemical/electronics/metal Processing/tobacco/glass
Cleaning Type:
Pulse Jet Cleaning/Manual
Power:
1.5~3.0kw
Keyword:
Welding Fume Dust Collector
Color:
Blue/gray/white/customized
Certification:
CE SGS ISO Certificate
Voltage:
380V, 50hz(optional)
Air Valume:
1500~3000m3/h
Type:
Industrial Dust Collector
Port:
TIANJIN
Application Field:
Chemical/electronics/metal Processing/tobacco/glass
Single Arm Blue Mobile Portable Dust Collector Welding Fume Extractor

Two Arm Welding Smoke Extraction System Welding Fume Dust Collection For Metal Welding



1. Application

The welding smoke purifier produced by the company is a purification device designed for industrial welding smoke and light particles, it is light and flexible, easy to operate, it is also widely used in chemical, electronics, metal processing, tobacco, glass, pharmaceutical, food processing, purification room, hospital and other industries and other places with dust and smoke pollution.

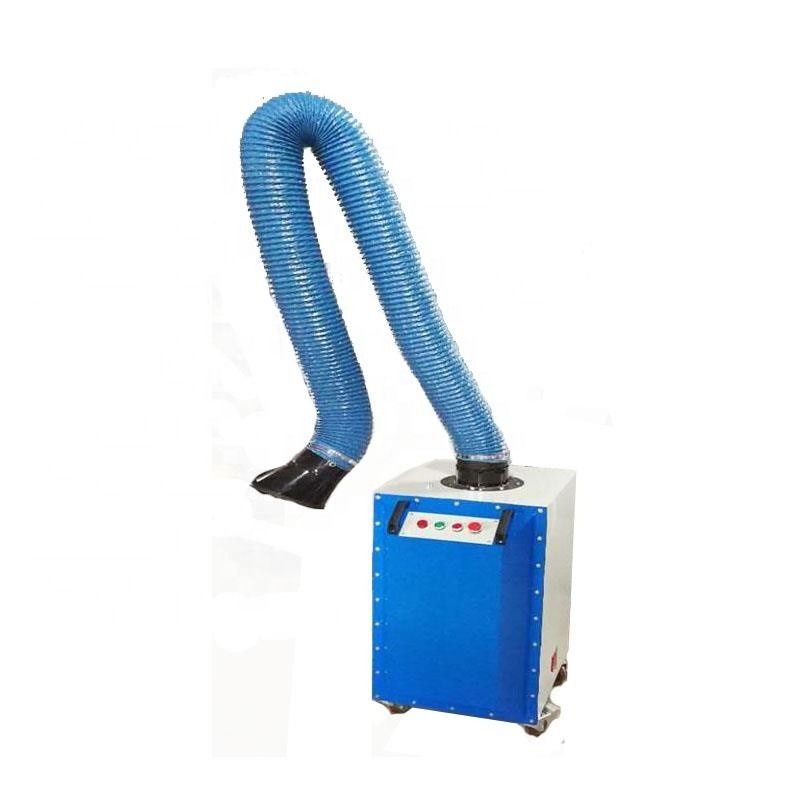

Single Arm Blue Mobile Portable Dust Collector Welding Fume Extractor 0





2.Equipment characteristics

(1) with a special turbine fan and brand motor, using the anti-overload circuit to prevent motor burning, high safety, stable performance.
(2) Manual cleaning: manual cleaning, so that the filter surface cleaning more thorough, clean, can always ensure that the dust collector has a constant intake of air;
(3) The filter cylinder is made of domestic well-known brand materials, long service life, can absorb 0.3μm dust particles, wet and sticky dust has a good filtering effect.
(4) The use of 360 degrees free movement of the universal suction arm, can absorb smoke from the smoke generation, greatly improve the collection rate of smoke, to ensure the health of operators.
(5) The purifier internal for fire hazards and large particles of slag using three protective measures, so that the purifier service life is longer, more safe and reliable.
(6) Clean air is evenly guided and dispersed from the direction of the grille vent, thus reducing noise to a minimum.
(7) With a special brake of the new Korean universal caster, easy to move and position the equipment.



3. Parameter Description

Take QD-HY2200D model for example:

Air Volume 2500m3/h Power 2.2kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 1 pc
Body Dimension 750*700*1100mm Cleaning Method Manual/Pulse
Shell Thickness 1.4mm The Size of Arm Φ*L160*3000mm, 1 pc
Noise <85 dB Purification Efficiency 99.97%



4. Installation instructions

● It should be used on a solid and flat ground to avoid noise caused by machine shaking.
● When using the machine, pay attention to whether the voltage of the power supply is consistent with the machine, and do not use a socket with other electrical appliances.
● When moving or handling the machine, the tilt of the machine should not exceed 45 degrees.
● When using the machine, pay attention to the surrounding space of not less than 50cm-100cm.
● The operation of the equipment is simple. Align the suction pipe port above the welding point that needs to be purified, turn on the power switch to start working, and turn off the power switch after the operation is completed.
● The connection between the suction hose and the equipment needs to be properly sealed to avoid the hose being collided and crushed by external forces, otherwise it may affect the airflow through.



5. FAQ

Q: What certificates do you have?
A:CE / ISO / SGS

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea
