Home > products > Industrial Dust Collector > Large Steel Industry Sintering Machine Electrostatic Dust Collector Customized

Large Steel Industry Sintering Machine Electrostatic Dust Collector Customized

Product Details

Place of Origin: China HeBei

Brand Name: QiaoDa

Certification: YES

Model Number: QDCDPK

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $5,0000 - $500,000

Packaging Details: Customer specified packing

Delivery Time: 30-60 work days

Payment Terms: T/T, MoneyGram, Western Union

Supply Ability: 1-5 units per month

Get Best Price
Highlight:

industry electrostatic dust collector

,

steel industry electrostatic dust collector

,

Customized electrostatic dust collector

Service Life:
More Than 10 Years
Efficiency:
99.9%
Power:
110kw
Size:
Customized
Air Flow:
3000-60000M3/H
Processing Air Volume:
100000m ³/ H
Feature:
High Dust Removal Efficiency
Core Parts:
Cathode Line And Anode Plate
Item:
Static Electricity
Filter Efficiency:
99.99%
Filter Speed:
0.8-1.50 M/min
Material:
Q235B
Work Principle:
Positive And Negative Discharge
Other:
Resistance Acid& Alkali
Service Life:
More Than 10 Years
Efficiency:
99.9%
Power:
110kw
Size:
Customized
Air Flow:
3000-60000M3/H
Processing Air Volume:
100000m ³/ H
Feature:
High Dust Removal Efficiency
Core Parts:
Cathode Line And Anode Plate
Item:
Static Electricity
Filter Efficiency:
99.99%
Filter Speed:
0.8-1.50 M/min
Material:
Q235B
Work Principle:
Positive And Negative Discharge
Other:
Resistance Acid& Alkali

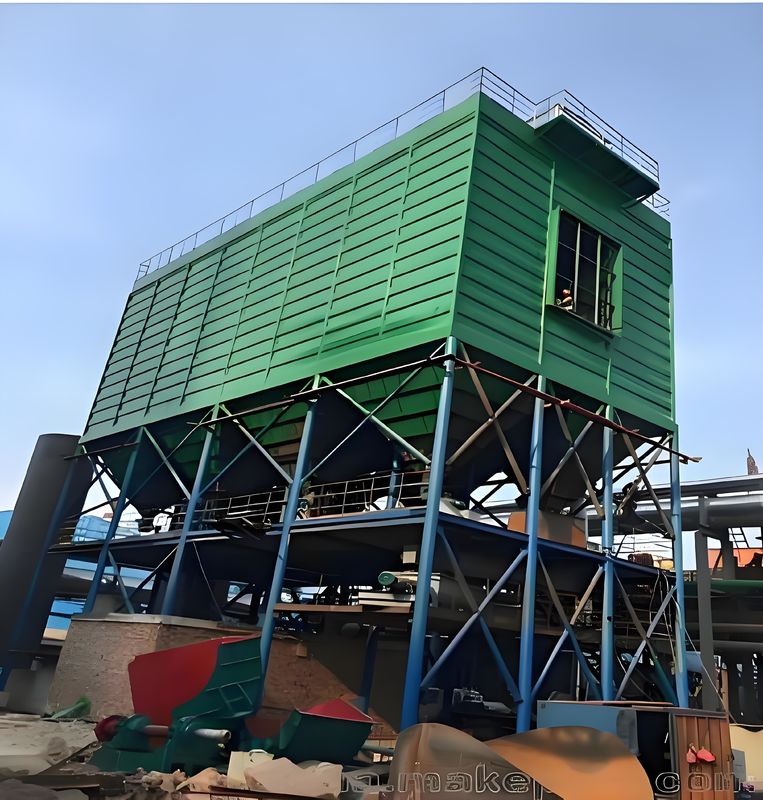

Large Steel Industry Sintering Machine Electrostatic Dust Collector Customized

Large steel industry sintering machine electrostatic dust collector electrostatic precipitators are mainly

used to filter the dust produced by burning coal in power plants.

Its working principle is to use a high voltage electric field to charge the suspended particles in the flue

gas, and then separate and collect them by electrostatic action. When the flue gas enters the dust

collector, the dust particles in it are attracted by the charge and adhere to the inner wall of the dust

collector. After a period of time, these dust particles will automatically fall and collect. This electrostatic

precipitator can filter out up to 99% of the dust, thus protecting the environment. This is how electrostatic

precipitators work.

Large steel industry sintering machine electrostatic dust collector the main reason why electrostatic

precipitators need to be cleaned regularly is to ensure their continuous

and efficient operation. Electrostatic precipitator attracts and collects particles in the air through the action

of electric field in the process of work, so that they deposit on the electrode. Over time, a large amount of

dust and particulate matter will accumulate on the electrode, which will gradually affect the electric field

strength and reduce the dust removal efficiency. In addition, ash accumulation can cause a number of

problems, including equipment damage and safety hazards.

Data/unit capacity 25-50MW 100-150MW 200MW 300MW
Treated smoke volume(m3/h) 25~40×104 70~110×104 130~185×104 150~210×104
Treatment flue gas temperature(℃) 130~170 130~180 130~180 130~200
Smoke resistance loss(Pa) <300 <300 <300 <300
Electric field smoke velocity(m/S) 0.9~1.1 1.0~1.3 1.0~1.4 1.0~1.4
Air leakage rate(%) <5 <5 <5 <5
Electric field cross section(m2) 55~110 90~130 120~170 190~230
Homopolar distance(mm) 300~410 300~410 300~410 300~410
Electric field length(m) 9~10.5 9~12 12~14 12~18
Working pressure(Pa) -3000~-4500 -3000~-4500 -3000~-5000 -5000~-6500
weight(T) 280~350 550~900 900~1100 1200~1500
Dust removal efficiency(%) >98 >98-99 >96-99 >98-99



Large Steel Industry Sintering Machine Electrostatic Dust Collector Customized 0





Electrostatic precipitator parameter table
