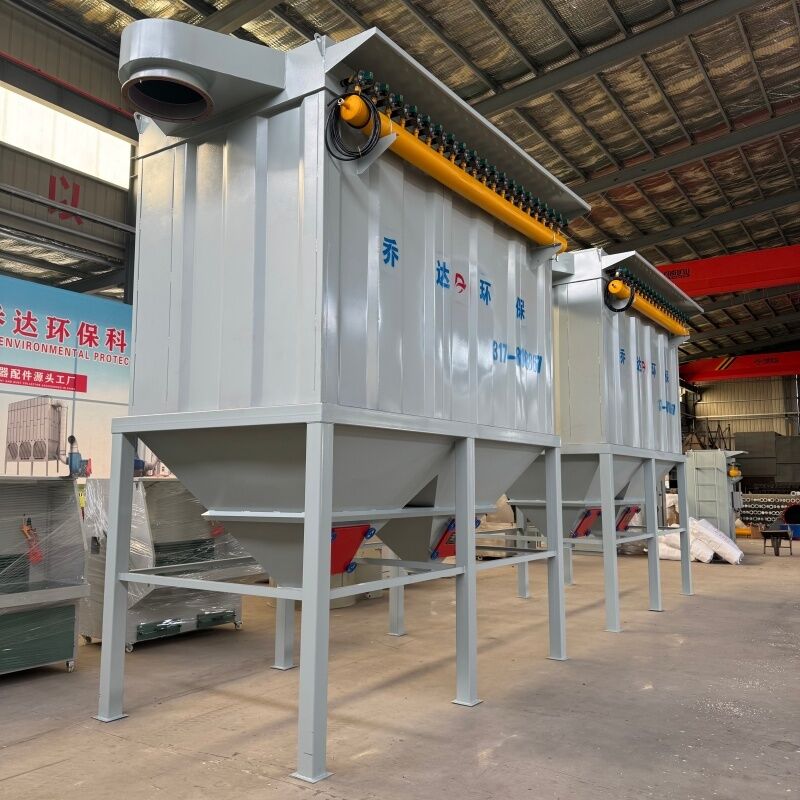

Medium Frequency Induction Furnace Baghouse Dust Collector

Name: Medium Frequency Induction Furnace Baghouse Dust Collector
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: DMC-300
Price: 76.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: china qiao da

Certification: YES

Model Number: DMC-300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3,000 - $150,000

Packaging Details: Iron frame

Delivery Time: 15-30 work days

Payment Terms: T/T,

Supply Ability: 1-10 units per month

Get Best Price

Product Details

Product Description

Highlight:
                                                medium frequency induction furnace dust collector, baghouse dust collector for induction furnace, industrial dust collector with medium frequency


Medium Frequency Induction Furnace Baghouse Dust Collector

High-Efficiency Pulse Jet Dust Collection System for Foundries and Metal Melting

The Medium Frequency Induction Furnace Baghouse Dust Collector is an industrial dust and fume filtration system specifically designed for dust generated during metal melting, casting, and foundry operations. Utilizing a pulse jet bag filter cleaning system, it continuously removes dust particles from furnace fumes while maintaining stable filtration performance.

Available as a complete solution including dust hood, air ducts, baghouse, filter bags, pulse cleaning system, dust hopper, discharge equipment, exhaust fan, and electrical control cabinet. Airflow, filtration area, filter media, and equipment dimensions can be customized according to furnace capacity and operating conditions.

Product Features

High-Efficiency Dust Collection: Large filtration area provides effective separation of fine dust generated during induction furnace melting and casting operations.
Pulse Jet Cleaning System: Compressed-air pulse cleaning automatically removes accumulated dust from filter bags, maintaining stable airflow and reducing manual maintenance.
Heavy-Duty Steel Construction: Main housing manufactured from welded carbon steel with reinforced structure suitable for continuous industrial operation.
Large Dust Hopper: Inclined hopper design allows collected dust to move efficiently toward discharge outlet, reducing internal dust accumulation.
High-Temperature Filter Options: Various filter media available to match actual flue-gas temperature, dust characteristics, and operating conditions.
Customized Complete System: Equipment can be integrated with fume extraction hoods, ductwork, exhaust fans, and control systems for comprehensive induction furnace dust extraction solutions.

Working Principle

During induction furnace operation, dust and fumes are generated around the furnace charging and melting area.

Furnace Fume → Extraction Hood → Ductwork → Baghouse Dust Collector → Filter Bags → Clean Air Chamber → Exhaust Fan → Stack

Dust-laden gas enters the baghouse and passes through filter bags. Dust particles are retained on the outer surface while filtered air passes into the clean-air chamber and discharges through the outlet.

As dust accumulates on filter bags, the pulse controller activates diaphragm pulse valves. Compressed air releases through blow tubes, producing powerful pulses that remove dust from filter bags. Collected dust falls into the hopper and discharges through the dust outlet.

Technical Specifications

Item	Technical Specification
Product Name	Induction Furnace Pulse Jet Baghouse Dust Collector
Dust Collector Type	Pulse Jet Bag Filter
Application	Medium Frequency Induction Furnace
Filter Bags	200 pcs
Filter Bag Material	High-Temperature Resistant Filter Felt
Filter Bag Size	Φ160 × 2000 mm (Customizable)
Filtration Area	Approx. 1000 m² (According to actual bag specification)
Dust Removal Method	Online Pulse Jet Cleaning
Cleaning Medium	Compressed Air
Working Pressure	0.5-0.7 MPa
Dust Collection Efficiency	≥99%
Inlet Dust Concentration	≤30 g/m³ (Design dependent)
Outlet Dust Concentration	≤30 mg/m³ (According to actual design)
Airflow Capacity	Customized according to furnace capacity
Operating Temperature	≤120°C for standard filter media
High-Temperature Design	Available for furnace flue gas applications
Dust Discharge	Hopper + Rotary Airlock / Manual Discharge
Hopper	Double Dust Hoppers
Pulse Valve	High-Performance Diaphragm Pulse Valve
Pulse Controller	Automatic Pulse Jet Controller
Control Mode	Automatic / Manual
Main Housing Material	Carbon Steel
Surface Treatment	Anti-Corrosion Painting
Insulation	Optional according to working conditions
Air Inlet	Customized according to system airflow
Air Outlet	Customized according to system design
Supporting Equipment	Dust Hood, Ductwork, Fan, Chimney and Control Cabinet
Power Supply	380V / 50Hz / 3Ph (Customizable)
Installation	Outdoor / Indoor
Customization	Airflow, filter material, dimensions and configuration can be customized
