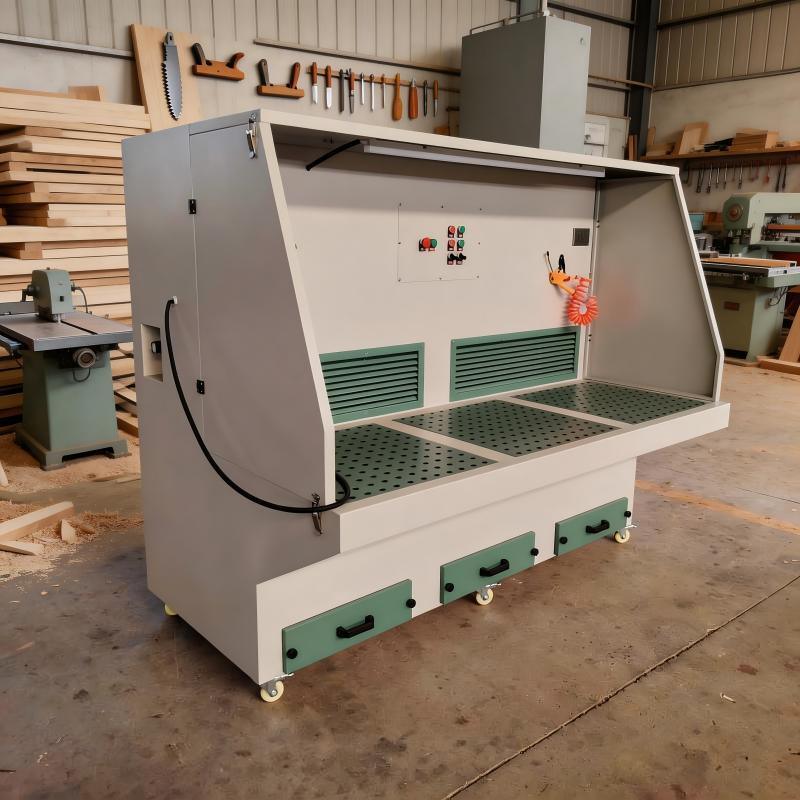

High Efficiency Industrial Downdraft Table for Metal Grinding Dust Extraction

Name: High Efficiency Industrial Downdraft Table for Metal Grinding Dust Extraction
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: QD-DM2000
Price: 1380 USD
Availability: InStock

Product Details

Place of Origin: HeBei China

Brand Name: QiaoDa

Certification: CE

Model Number: QD-DM2000

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: 1380

Packaging Details: Wooden box

Delivery Time: 15days

Payment Terms: T/T

Supply Ability: 50

Get Best Price

Product Details

Product Description

Highlight:

High Efficiency Industrial Downdraft Table for Metal Grinding Dust Extraction

Product Overview

The Industrial Downdraft Table is designed to capture dust, smoke, and fine particles directly at the source. With a built-in fan and high-efficiency filtration system, it keeps the work area clean, improves air quality, and helps create a safer working environment.

Down-suction Polishing Table Standard Technical Parameter Table

Parameter Item	Standard Technical Parameters	Parameter Description
Equipment Model	HX-DT Series (Customizable)	Standard conventional model, supports non-standard size customization
Dust Removal Method	Down-suction Negative Pressure Dust Removal	Downward air suction from the table surface to completely prevent dust overflow and diffusion
Rated Air Flow	3000-8000m³/h	3000m³/h for single station, 8000m³/h for double stations, stable and adjustable air volume
Worktable Size (L×W)	1200×800mm / 1500×1000mm (Conventional)	Supports non-standard size customization from 1m to 2m, suitable for polishing of various workpieces
Overall Dimension (L×W×H)	1200×800×1600mm (Conventional Single Station)	Small floor space, can be placed directly in the workshop without embedded pipes
Fan Power	2.2KW / 3KW / 4KW	Pure copper centrifugal fan with strong suction and stable operation
Working Voltage	380V 50Hz (Industrial Three-phase Power)	220V customized version is available to adapt to different workshop power environments
Filtration Configuration	Primary Filtration + Medium Filtration + High-efficiency Filter Three-layer Filtration	Intercept polishing dust layer by layer, filters are washable and replaceable
Purification Efficiency	≥99.5%	Effectively treat metal dust, wood dust and polishing fine dust to meet emission standards
Dust Cleaning Method	Manual Cleaning / Automatic Pulse Cleaning (Optional)	Manual cleaning for low air volume models, automatic pulse cleaning for high air volume models
Equipment Noise	≤75dB	Equipped with noise reduction cotton and silent fan, compliant with workshop noise standards
Tabletop Material	Thickened Cold-rolled Steel Plate / Stainless Steel	Wear-resistant and durable, anti-collision, not easy to deform
Dust Collection Method	Bottom Drawer Type Dust Collection	Pull-out dust drawer for convenient and dust-free cleaning
Operating Resistance	≤800Pa	Low wind resistance, low fan energy consumption and power-saving for long-term operation
Application Conditions	Metal Polishing, Buffing, Derusting, Wood Polishing, Hardware Deburring	Wet and dry dual-use, suitable for conventional industrial dry polishing working conditions
Protection Configuration	Fireproof Filter Screen, Overload Protection, Leakage Protection	Prevent filter bag burning by sparks, ensure safe and stable equipment operation

Features

High-efficiency dust and smoke collection
Strong steel construction for long service life
Easy-to-clean filter system
Low noise and stable operation
Custom sizes and airflow available

Applications

The Industrial Downdraft Table is widely used for:

Metal grinding
Welding
Polishing
Sanding
Cutting
Woodworking
Manufacturing workshops

Working Principle

Dust and smoke are drawn downward through the perforated work surface. The contaminated air passes through the filter cartridges, where dust is captured. Clean air is then returned to the workspace or discharged through an exhaust system.

Benefits

Improve workplace air quality
Reduce airborne dust and fumes
Protect workers' health
Keep the workshop clean
Lower maintenance costs
Suitable for continuous industrial use
