Automatic Chemical Liquid Acid Alkali PH Chlorine Dosing System

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: /

Model Number: /

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: negotiated price

Packaging Details: wooden package

Delivery Time: 15~20 day

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 200 unit/month

Get Best Price
Highlight:

pH Chlorine Dosing System

,

Chemical automatic chlorine dosing system

,

acid alkali dosing system

Application:
Factory/Plant
Dimensions:
Customzied
Material:
SS/PVC/PP
Control System:
PLC/manual/automatic
Power Supply:
380V/50Hz
Volume Of Dissolution Tank:
0.1m³~20m³
Application:
Factory/Plant
Dimensions:
Customzied
Material:
SS/PVC/PP
Control System:
PLC/manual/automatic
Power Supply:
380V/50Hz
Volume Of Dissolution Tank:
0.1m³~20m³
Automatic Chemical Liquid Acid Alkali PH Chlorine Dosing System

Automatic Chemical liquid acid alkali pH Chlorine Dosing System

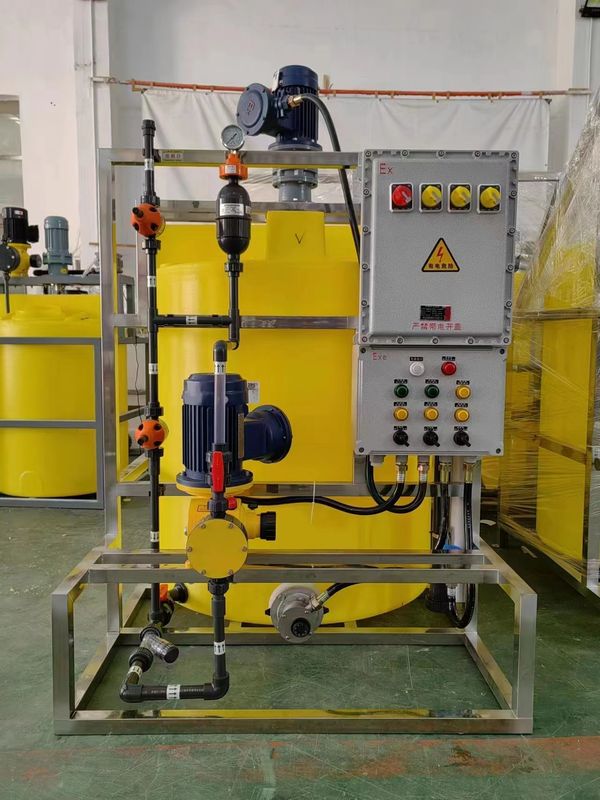

1. Composition of dosing device

Dosing device consists of solution tanks, a number of flanges, valves and other components. Configuration of a metering pump or two metering pumps. For one with a backup, so that it is convenient for users to carry out maintenance and replacement of parts without stopping the state.



The main components of this device are.

(1) solution tank

(2) agitator

(3) level meter

(4) filter

(5) safety valve

(6) metering pump

(7) Buffer

(8) ball valves/check valves/stop valves

(9) pressure gauges and corresponding piping



2. Description

Diaphragm type metering pump flow rate of 30L/h, pressure 6.3MP.

Diaphragm type metering pump motor power is 0.55W, insulation class F:.

Stirrer consists of motor, reducer, stirring bar, motor power is 0.75KW, reduction ratio is 11:.

All parts of the unit including working platform and handrail are mounted on the same stainless steel chassis.



3. Specification

Volume of dissolution tank 0.1m³~20m³
Types of metering pumps Plunger, mechanical diaphragm and hydraulic diaphragm types
Flow rate of metering pumps 30L/h~8000L/h
Metering pump pressure 0.1MPa~25MPa
Dosing method Manual, automatic and remote control
Application Water treatment, industrial production
Material Stainles Steel/PVC/PP



Automatic Chemical Liquid Acid Alkali PH Chlorine Dosing System 0



4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
