Product Details
Place of Origin: China
Brand Name: QiaoDa
Certification: YES
Model Number: 4-68-8D
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $800
Packaging Details: Consultation with customers
Delivery Time: 15 word days
Payment Terms: T/T
Supply Ability: 100 units per month
Motor Speed: |
960-2900 Rpm |
Packing Ways: |
Wooden Case |
Impeller Test: |
Ultrasonic Flaw Detection |
Motor Brand: |
Siemens/ABB |
System Type: |
Various Models |
Air Volume: |
1000-100000 M3/h |
Impeller Testing: |
Dynamic Blancing Adjusting |
Drive: |
Coupling Driven |
Electric Current Type: |
AC |
Voltage: |
220V/380V |
Usage: |
Induced Draft Fan |
Bearing Cooling: |
Air Cooling Or Circulating Water Cooling |
Blade Number: |
4-73、5-48、6-51、9-19 |
Motor Speed: |
960-2900 Rpm |
Packing Ways: |
Wooden Case |
Impeller Test: |
Ultrasonic Flaw Detection |
Motor Brand: |
Siemens/ABB |
System Type: |
Various Models |
Air Volume: |
1000-100000 M3/h |
Impeller Testing: |
Dynamic Blancing Adjusting |
Drive: |
Coupling Driven |
Electric Current Type: |
AC |
Voltage: |
220V/380V |
Usage: |
Induced Draft Fan |
Bearing Cooling: |
Air Cooling Or Circulating Water Cooling |
Blade Number: |
4-73、5-48、6-51、9-19 |

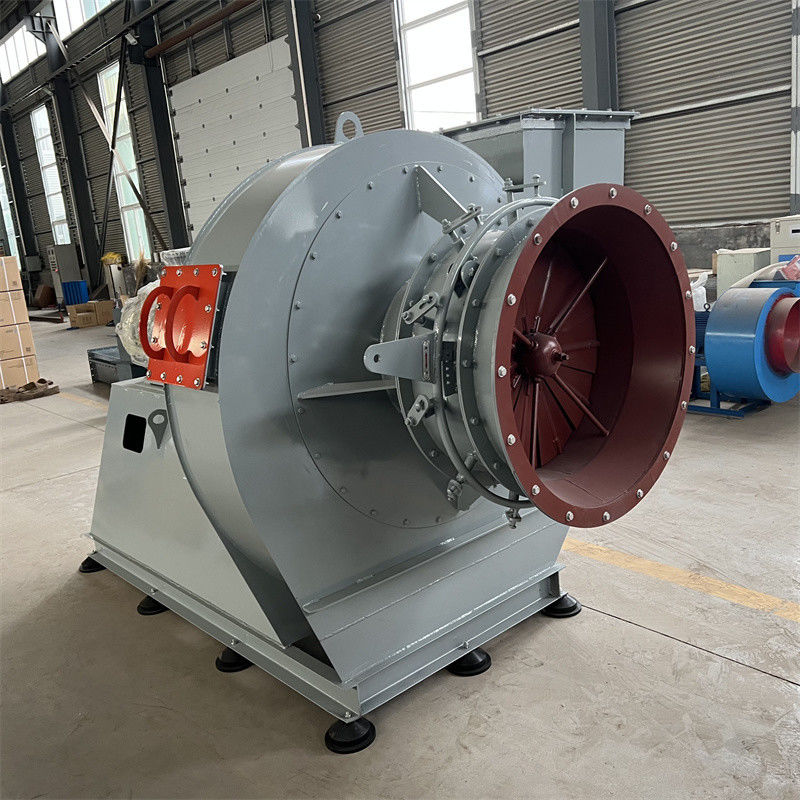

Custom variable frequency low noise boiler dust collector induced draft fan
The centrifugal fan uses a high-speed rotating impeller to accelerate the gas, then
decelerates and changes the flow direction to convert the kinetic energy into potential
energy (pressure). In a single-stage centrifugal fan, the gas enters the impeller from
the axial direction, changes radial as the gas flows through the impeller, and then
enters the diffuser. In the diffuser, the gas changes the direction of flow and the
increase in the section area of the pipe slows down the gas flow, which converts
kinetic energy into pressure energy. * The pressure increase mainly occurs in the
impeller, followed by the diffusion process. In a multistage centrifugal fan, a reflow
is used to make the air flow into the next blade to produce a higher pressure.
Model number | Rotational speed (r/min) | Total pressure (Pa) | Flow rate (m³/b) | Internal efficiency (%) | Internal power (KW) | Shaft power (KW) | Required power (KW) | |
Motor(KW) | ||||||||
8D | 1AS0 | 2745 | 11000 | 75 | 11.2 | 11.4 | 13.1 | 15 |
2701 | 13200 | 78 | 12.7 | 13 | 14.9 | |||
2612 | 15400 | 81 | 13.8 | 14.1 | 16.2 | 18.5 | ||
2479 | 17600 | 83 | 14.6 | 14.8 | 17 | |||
2346 | 19800 | 82 | 15.7 | 16.I | 18.5 | 22 | ||
2214 | 22000 | 80 | 16.9 | 17.3 | 19.8 | |||
2036 | 24200 | 77 | 17.8 | 18,I | 20.9 | |||
1859 | 26400 | 74 | 18.4 | 18.8 | 21.6 | |||
9D | 1450 | 3474 | 15700 | 75 | 20.2 | 20.6 | 23.7 | 30 |
3418 | 18800 | 78 | 22.9 | 23.4 | 26.9 | |||
3306 | 21900 | 81 | 24.8 | 25.3 | 29.1 | |||
3138 | 25000 | 83 | 26.3 | 26.8 | 30.8 | |||
2969 | 28100 | 82 | 28.3 | 28.8 | 33.2 | 15 | ||
2801 | 31300 | 80 | 30.4 | 31.】 | 35.7 | |||
2577 | 34400 | 77 | 32 | 32.6 | 37.5 | |||
2353 | 37500 | 74 | 33.1 | 33.8 | 38.9 | |||
10D | 1450 | 4289 | 21500 | 75 | 34.2 | 34.9 | 40. | 45 |
4220 | 25800 | 78 | 38.8 | 39.6 | A5.5 | |||
4081 | 30000 | 81 | 42 | 42.8 | 49.3 | 55 | ||
3874 | 34300 | 83 | 44.S | 4S. | S2.2 | |||
3666 | 38600 | 82 | 7.9 | 48.9 | S6.3 | 75 | ||
3459 | 42900 | 80 | 51.5 | S2.6 | 605 | |||
3182 | 47200 | 77 | S4.2 | 55.3 | 63.6 | |||
2905 | 51500 | 74 | S6.2 | S7.3 | 65.9 | |||
1ID | 】450 | 5190 | 28600 | 75 | 55 | 56 | 65 | 75 |
5106 | 34300 | 78 | 62 | 64 | 73 | |||
4938 | 40000 | 81 | 68 | 69 | 79 | 90 | ||
4688 | 45700 | 83 | 72 | 73 | 84 | |||
4436 | S1400 | 82 | 77 | 79 | 9】 | 110 | ||
4185 | 57100 | 80 | 83 | 85 | 97 | |||
3850 | 62800 | 77 | 87 | 89 | 102 | |||
3515 | 68500 | 74 | 90 | 92 | 106 |
