Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 840~3000/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

Polishing Downdraft Sanding Table

,

Grinding Downdraft Sanding Table

,

Dust Remove Workbench

Dust Removal:
Pulse Jet Blowing
Core Components:
PLC, Fan, Filter Cartridge
Filter Bag Size:
325*600mm
Application:
Chemical Factory/metallurgy/Power Plant
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE,ISO
Main Function:
Removing Industrial Dust
Power:
1.1kw~3kw
Voltage:
380V, 50hz(optional)
Dust Removal:
Pulse Jet Blowing
Core Components:
PLC, Fan, Filter Cartridge
Filter Bag Size:
325*600mm
Application:
Chemical Factory/metallurgy/Power Plant
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE,ISO
Main Function:
Removing Industrial Dust
Power:
1.1kw~3kw
Voltage:
380V, 50hz(optional)

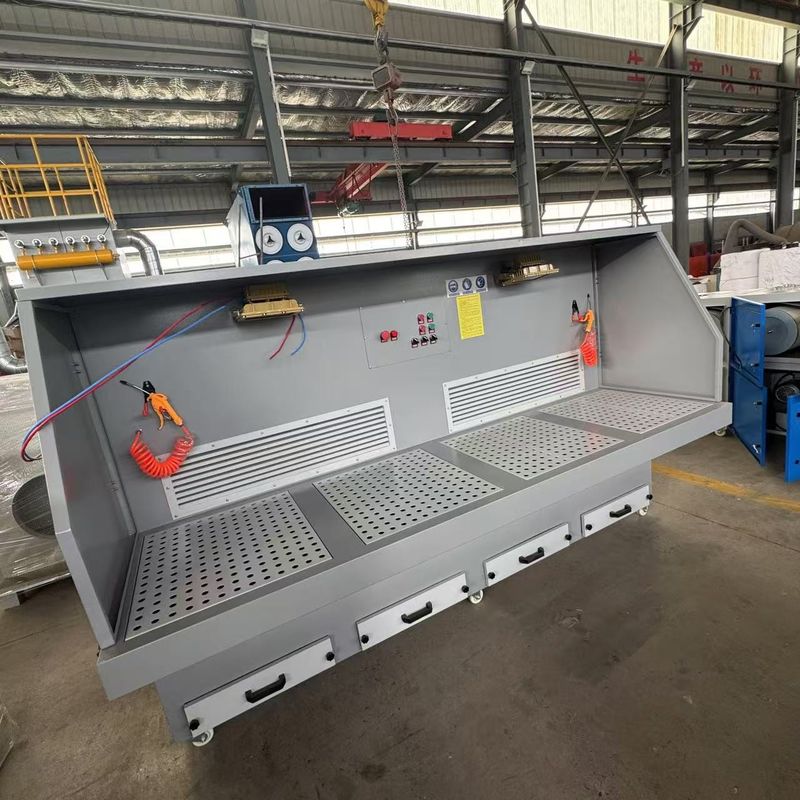

Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench

Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench



Grinding table is a kind of industrial dust removal equipment which integrates table and dust collector. Grinding table is suitable for small and medium-sized fine processing, irregular parts processing conditions. Without interfering with the daily work of workers, the grinding table can effectively capture the suspended fine dust, providing workers with a clean and healthy working environment.



1. Classification
(1) Dry dust removal grinding table
It adopts dry dust removal technology to capture and purify the dust particles generated during the sanding process through high-efficiency filtration materials (such as cartridges) to ensure a clean and safe working environment.
(2) Wet dust removal grinding table
Wet dust removal through water or other liquid media and dust particles in contact with the dust particles, so that the dust particles wet and settled down, so as to achieve the purpose of dust removal. This type of dust removal has higher safety when dealing with flammable and explosive dust.
(3) Lay-flat dust removal grinding table
Lay-flat working surface is easy to place and fix the workpiece, improve the stability and efficiency of the grinding operation.

Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench 0

Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench 1



2. Parameter Description

Take QD-DM2000 model for example:

Air Volume 3000m3/h Power 3kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 3 pcs
External Size 2000*1000*800mm Cleaning Method Pulse Valve
Pulse Valve 1.0 inch, 3 pc Noise  <85 dB
Purification Efficiency  99.97%





3. How to choose the right sanding dust removal workbench?
When choosing a sanding dust removal workbench, you need to consider the following factors:
1. workbench size: choose the right workbench size according to the actual need to ensure that it can accommodate the required sanding tools and materials.
2. dust removal efficiency: choose products with high dust removal efficiency to ensure the cleanliness of the working environment.
3. Noise control: Choose low-noise products to minimize the impact on workers' hearing.
4. Ease of maintenance: Choose products that are easy to maintain and clean to reduce the cost of use.

Downdraft Sanding Table Grinding And Polishing Dust Remove Workbench 2



4. FAQ

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea
