Right Angle Electromagnetic Pulse Valve For Power Plants Customized Pulse Valves

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: ISO

Model Number: DMF-Z-25/50/75/100

Payment & Shipping Terms

Minimum Order Quantity: 10 pc

Price: negotiated price

Packaging Details: wooden package

Delivery Time: 5~10 day

Payment Terms: D/A, D/P, T/T

Supply Ability: 500 unit/month

Get Best Price
Highlight:

right angle electromagnetic pulse valve

,

electromagnetic diaphragm pulse valve

,

customized diaphragm pulse valve

Application:
Industrial Dust Collector
Size:
1/1.5/2/2.5/3 Inches
Operation:
Manual
Media:
Air
Valve Type:
Pulse Valve
Temperature Range:
-10~55
Material:
Stainless Steel,Casting,carbon Steel
Working Temperature:
-10~55℃
Product Name:
Pulse Valve/electromagnetic Pulse Valve/solenoid Pulse Valve
Application:
Industrial Dust Collector
Size:
1/1.5/2/2.5/3 Inches
Operation:
Manual
Media:
Air
Valve Type:
Pulse Valve
Temperature Range:
-10~55
Material:
Stainless Steel,Casting,carbon Steel
Working Temperature:
-10~55℃
Product Name:
Pulse Valve/electromagnetic Pulse Valve/solenoid Pulse Valve
Right Angle Electromagnetic Pulse Valve For Power Plants Customized Pulse Valves

Right-Angle Electromagnetic Pulse Valves For Power Plants Customized Pulse Valves

1. Introduction

Pulse solenoid valve, also known as diaphragm valve, is a pulse bag filter cleaning and blowing system of compressed air “switch”, controlled by the pulse blowing control instrument output signal, the filter bag row by row (room) blowing cleaning, so that the dust collector resistance is maintained within the set range, in order to ensure that the dust collector's processing capacity and dust collection efficiency.



2. Function

Control the size of oil pressure in the oil circuit. Generally installed in the main oil circuit or damper back pressure oil circuit, in order to reduce the oil pressure shock when shifting gears and locking and unlocking, so that the equipment operation to maintain a smooth state.
According to the valve inlet and outlet angle and the form of air inlet can be divided into three kinds.
(1) Right-angle electromagnetic pulse valve: valve body inlet and outlet at right angles, directly controlled by the electrical signal diaphragm valve
(2) Straight-through electromagnetic pulse valve: the valve body inlet and outlet into 180 degrees, directly controlled by the electrical signal of the diaphragm valve
(3) Submerged electromagnetic pulse valve: valve body inlet submerged in the air bag, directly by the electrical signal control of the diaphragm valve

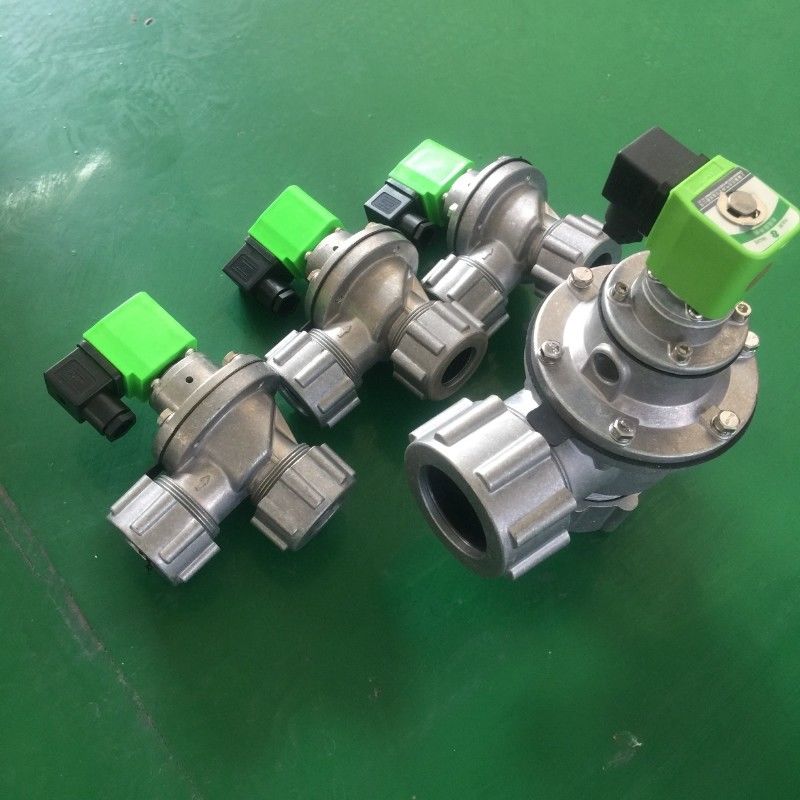

Right Angle Electromagnetic Pulse Valve For Power Plants Customized Pulse Valves 0Right Angle Electromagnetic Pulse Valve For Power Plants Customized Pulse Valves 1Right Angle Electromagnetic Pulse Valve For Power Plants Customized Pulse Valves 2



3. Parameter

Model DMF-Y DMY-Z DMY-T DMF-2L-B-G3/4
Working Pressure 0.3~0.6MPa 0.3~0.6MPa 0.3~0.6MPa 0.4~0.6MPa
Working Medium clean air clean air clean air clean air
Voltage DC24V/AC220V DC24V/AC220V DC24V/AC220V DC24V/AC110/220V
Power 800/60MA 800/60MA 800/60MA 0.8/0.46/0.23A
Working Environmental Temperature -10℃ to 55℃, air relative humidity not more than 85%.
Diaphragm life 1,000,000 times or 2 to 3 years



4. Q&A

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A: ISO / SGS
