Industrial Dust Collector Rotary Feed Valve Stainless Steel Class 150 Pressure Rating

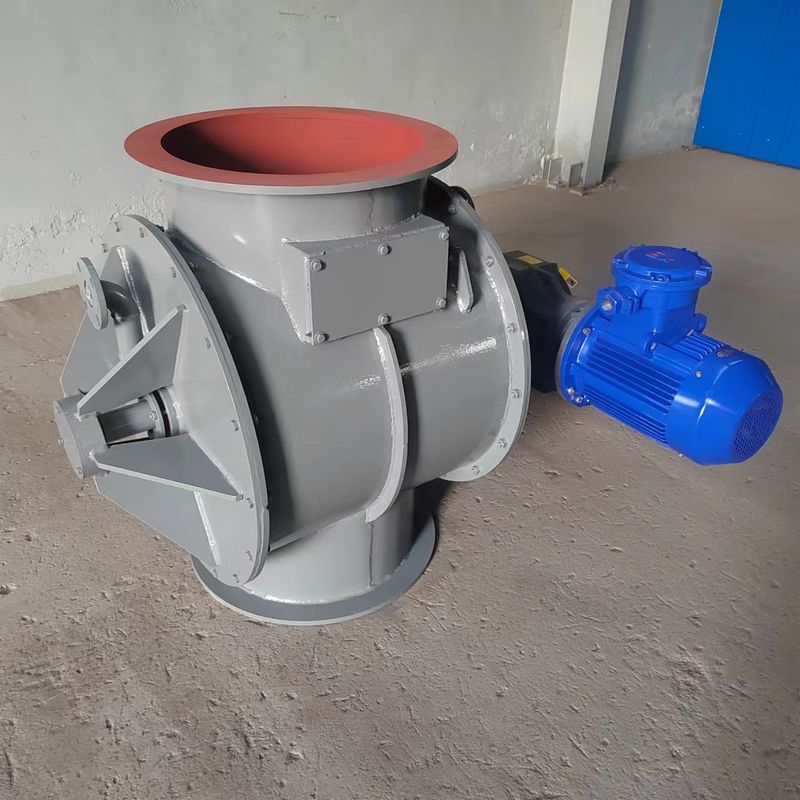

Industrial Dust Collector Rotary Feed Valve
The electric discharger is composed of a rotor impeller with several blades, a shell,
a seal, a reducer, a motor, etc. It has the characteristics of reliable and stable
operation, low noise, less failure, long life, etc., using ductile iron and bearing steel,
has the advantages of good performance and high wear resistance. As an advanced
discharge equipment, electric discharger has played a great role in dust removal,
metallurgy, building materials, chemical, food and other industries.
The upper and lower flanges of the electric discharger are basically square or round,
and can also be selected by the user. The electric discharger is divided into three
categories: ordinary type, high temperature resistant type and pressure resistant type.
Among them, the temperature of the material transported by it can reach 280°C. Both
ends of the bearing and the impeller have a certain isolation, which can prevent the
contact between the ultra-fine powder and the bearing. The temperature of the high t
emperature conveying material can reach 500°C, and the sprocket is connected, and
the reducer and the discharger shell have a certain distance.
| 型号 |
ΦA |
ΦB |
φC |
E |
F |
M |
H |
h |
Φ |
| YJD02型 |
250 |
210 |
150 |
650 |
420 |
122.5 |
225 |
12 |
9 |
| YJD04型 |
280 |
240 |
180 |
758 |
526 |
140 |
280 |
15 |
11 |
| YJD06型 |
300 |
260 |
200 |
778 |
536 |
150 |
300 |
15 |
11 |
| YJD08型 |
320 |
280 |
220 |
798 |
546 |
160 |
320 |
18 |
11 |
| YJD10型 |
340 |
300 |
240 |
880 |
628 |
170 |
340 |
18 |
13 |
| YJD12型 |
360 |
320 |
260 |
900 |
638 |
180 |
360 |
18 |
13 |
| YJD14型 |
380 |
340 |
280 |
920 |
648 |
190 |
380 |
20 |
17 |
| YJD16型 |
400 |
360 |
300 |
960 |
678 |
200 |
400 |
20 |
17 |
| YJD18型 |
420 |
380 |
320 |
980 |
688 |
220 |
440 |
22 |
17 |
| YJD20型 |
440 |
400 |
340 |
1000 |
698 |
230 |
450 |
22 |
17 |
| YJD26型 |
500 |
460 |
400 |
1150 |
740 |
260 |
520 |
24 |
17 |
| YJD30型 |
600 |
500 |
440 |
1190 |
755 |
280 |
600 |
24 |
17 |
