Product Details
Place of Origin: HeBei China
Brand Name: QiaoDa
Certification: YES
Model Number: LDMC-2000
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $20000 - $100,000/PC
Packaging Details: Consultation with customers
Delivery Time: 15-45word days
Payment Terms: T/T
Supply Ability: 5units per month
Warranty: |
1 Years |
Material: |
Carbon Steel |
Power Source: |
Electric |
Working Temperature: |
Less Than 130 ℃ |
Structure: |
Bag House |
Service Life: |
1years |
Material Of Bag: |
Needle Felt, Glass Fiber, PTFE, FMS. |
Cleaning Method: |
Pulse Jet Cleaning |
Filter Bag Size: |
160mm*6000mm |
Work Principle: |
PLC Automatic Control |
Air Pressure: |
0.5-0.8Mpa |
Power: |
15KW-220kw |
Area Covers: |
All |
Processing Air Volume: |
10000-300000m ³/ H |
Warranty: |
1 Years |
Material: |
Carbon Steel |
Power Source: |
Electric |
Working Temperature: |
Less Than 130 ℃ |
Structure: |
Bag House |
Service Life: |
1years |
Material Of Bag: |
Needle Felt, Glass Fiber, PTFE, FMS. |
Cleaning Method: |
Pulse Jet Cleaning |
Filter Bag Size: |
160mm*6000mm |
Work Principle: |
PLC Automatic Control |
Air Pressure: |
0.5-0.8Mpa |
Power: |
15KW-220kw |
Area Covers: |
All |
Processing Air Volume: |
10000-300000m ³/ H |

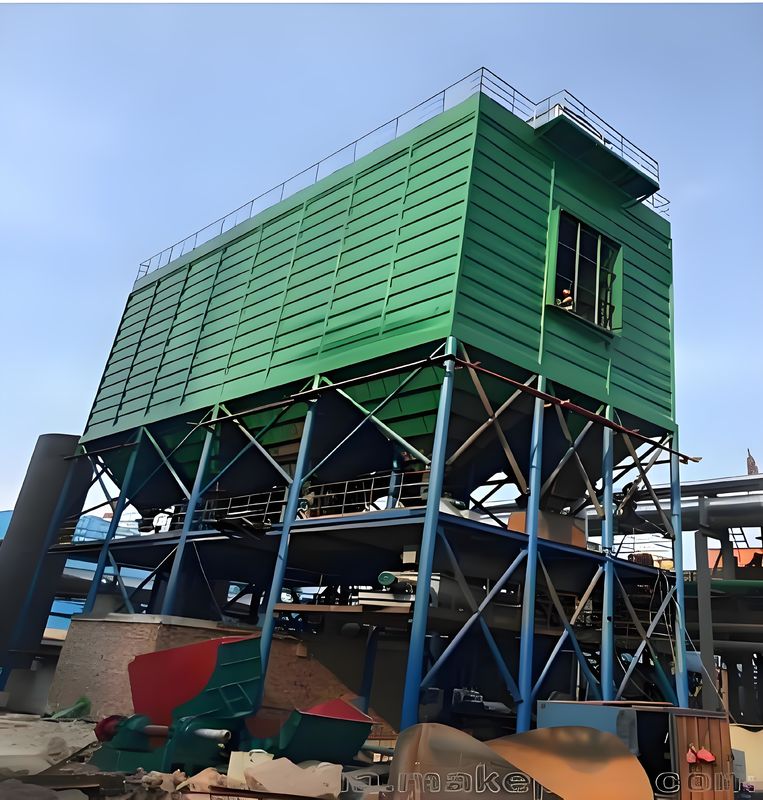

Central dust removal filtration system in the factory
The central dust collection system of the factory is mainly composed of the main dust
collection machine, the dust collection pipe, the dust collection jack and the dust
collection assembly. The vacuum host is usually cleverly placed outdoors or in the
computer room, balcony, garage, and equipment room of the building, so as to save
indoor space and avoid noise interference.
The central dust collection system of the factory is connected to the main engine through
the suction pipe embedded in the wall, and the suction jack in each room. When cleaning,
just insert a long hose into the suction socket, dust, paper scraps, cigarette butts and other
debris will be sucked through the vacuum pipe to the filter bag in the dust collector.
Type | LCM1850 | LCM2300 | LCM2800 | LMC3700 | LCM4600 | LCM5500 | LCM6500 | LMC1850×2 |
Filter area (m2) |
1850 | 2300 | 2800 | 3700 | 4600 | 5500 | 5500 | 3700 |
Treated air volume(m3/h) | 6.2 | 20.7 | 25.2 | 33.3 | 41.4 | 49.5 | 58.5 | 33.3 |
Number of filter bags (PCS) |
616 | 770 | 924 | 1232 | 1540 | 1848 | 2156 | 1232 |
Filter bag specification | φ160×6050 | |||||||
Cleaning method | Off-line cleaning | |||||||
Number of off-line compartments (pieces) |
4 | 5 | 6 | 8 | 10 | 12 | 14 | 8 |
Air leakage rate of dust collector (%) |
≤2% | |||||||
The precipitator inlet is thick The degree of (g/m3) |
≤20g/m3 | |||||||
Dust collector discharge degree (g/m3) |
50-100g/m3 |
