Product Details
Place of Origin: HeBei China
Brand Name: QiaoDa
Certification: YES
Model Number: DMC48A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $3000 - $50,000/PC
Packaging Details: Consultation with customers
Delivery Time: 16 word days
Payment Terms: T/T
Supply Ability: 12 units per month
Filter Area: |
36 ㎡ |
Structure: |
Bag Dust Collector |
Product_Model: |
QDMC-48A |
Air Pressure: |
Tailored |
Product_Name: |
Industrial Dust Collector |
Product_Voltage: |
380 V 50HZ |
Product_Capacity: |
3000 CFM |
Filter Bag Size: |
132*2000mm |
Air Valume: |
5000 |
Customized: |
Accept |
Color: |
Silver |
Product_Material: |
304 316 Stainless Steel |
Control System: |
PLC |
Filter Area: |
36 ㎡ |
Structure: |
Bag Dust Collector |
Product_Model: |
QDMC-48A |
Air Pressure: |
Tailored |
Product_Name: |
Industrial Dust Collector |
Product_Voltage: |
380 V 50HZ |
Product_Capacity: |
3000 CFM |
Filter Bag Size: |
132*2000mm |
Air Valume: |
5000 |
Customized: |
Accept |
Color: |
Silver |
Product_Material: |
304 316 Stainless Steel |
Control System: |
PLC |

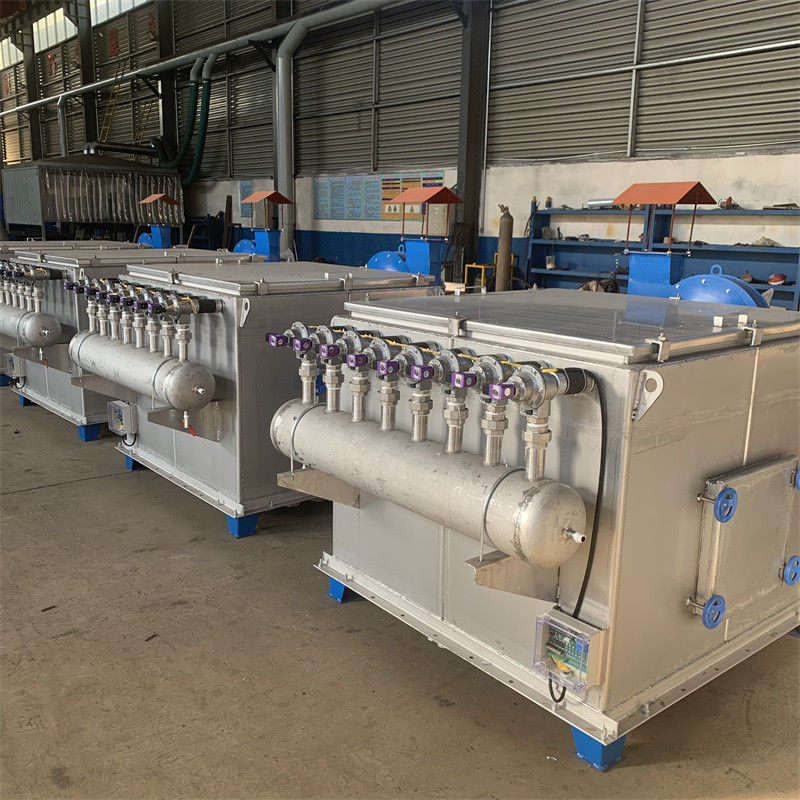

Chemical plant stainless steel dust collector use porous bag-like filter elements (such as filter
bags) for dust removal. When the dust-containing gas passes through the filter bag, the dust
particles are blocked on the surface of the filter bag, and the purified gas is discharged through
the filter bag. With the continuous work of the dust collector, the accumulation of dust on the
surface of the filter bag increases, and the cleaning operation needs to be carried out regularly
to maintain the dust removal efficiency.
Chemical plant stainless steel dust collector is an efficient, dry air purification equipment, mainly
used in various industrial fields, such as metallurgy, chemistry, ceramics, cement, medicine, food,
etc., to remove dust particles in the air, protect the environment and may recover valuable
dust resources.
Equipment type | DMC-48A | Material: carbon steel or stainless steel |
Filter area | 36m2 | |
Dust collector cloth bag | 48PCS | Polyester needle felt covered |
Dust collector bag cage | 48PCS | 8 bars 3.5 wire surface spray treatment |
Electromagnetic pulse valve | 6PCS | 24V |
Star discharger | 1PCS | Material: Cast iron 0.75 |
Inlet size | 800 | |
Dust collector fan | 1PCS | 4KW |
Equipment dimensions | 1440mm×1020mm×4500mm |
