Wood Factory Industrial Dust Removal Equipment PLC Control System

Name: Wood Factory Industrial Dust Removal Equipment PLC Control System
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: DMC-500
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: HeBei China

Brand Name: QiaoDa

Certification: YES

Model Number: DMC-500

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $1,500 - $20,000/PC

Packaging Details: Consultation with customers

Delivery Time: 15 word days

Payment Terms: T/T

Supply Ability: 20 units per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Wood Factory dust removal equipment, Industrial dust removal equipment, PLC industrial dust removal equipment


Filter Area:	400 ㎡	Structure:	Bag Dust Collector
Product_Model:	QDMC-500	Air Pressure:	Tailored
Product_Name:	Industrial Dust Collector	Product_Voltage:	220/460 V
Product_Capacity:	15000-20000 CFM	Filter Bag Size:	132*2000mm
Air Valume:	25000-30000	Customized:	Accept
Color:	Bule	Product_Material:	Mild Steel
Control System:	PLC	Minimum Particle Size:	0.5Micron

Filter Area:	400 ㎡
Structure:	Bag Dust Collector
Product_Model:	QDMC-500
Air Pressure:	Tailored
Product_Name:	Industrial Dust Collector
Product_Voltage:	220/460 V
Product_Capacity:	15000-20000 CFM
Filter Bag Size:	132*2000mm
Air Valume:	25000-30000
Customized:	Accept
Color:	Bule
Product_Material:	Mild Steel
Control System:	PLC
Minimum Particle Size:	0.5Micron

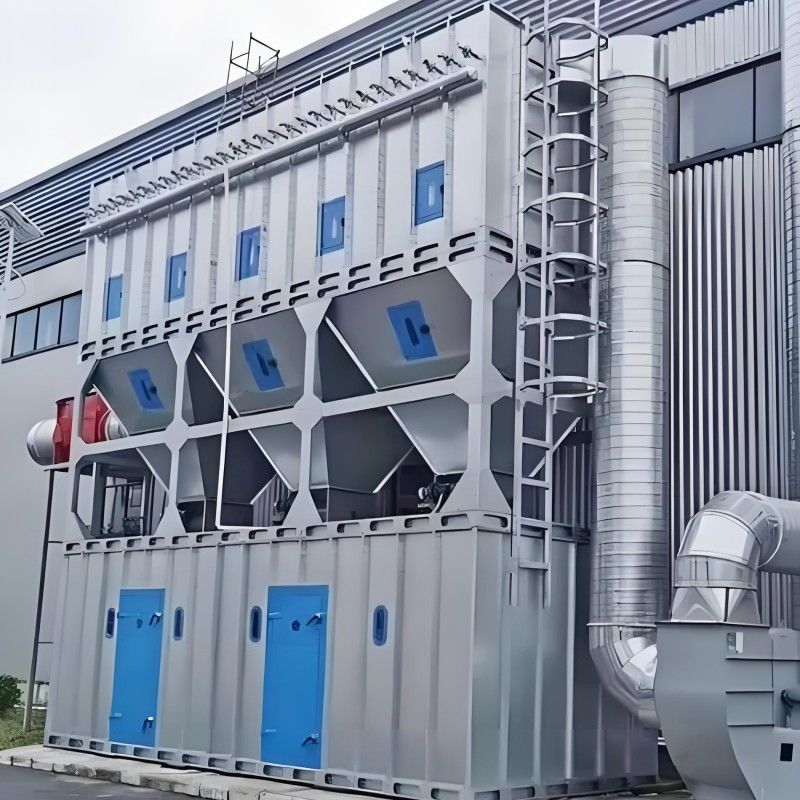

Wood Factory Industrial Dust Removal Equipment PLC Control System

Wood factory industrial dust removal equipment is designed for woodworking workshops, grinding workshops, paint workshops, and similar environments. It effectively removes sawdust, paint dust, and other particles generated during processing operations. The system consists of three main components: pipeline system, fan system, and filtration system, utilizing negative pressure suction to transport particle-laden air to the filtration system where clean gas is separated.

Classification of Woodworking Dust Collectors

Woodworking dust collectors are categorized by installation method and dust removal technique:

By Installation:
- Indoor Dust Collectors: Common bag-type vacuum cleaners and pipe-type filters
- Outdoor Dust Collectors: Straight drop dust collectors and pulse module dust collectors
By Dust Removal Method: Positive pressure dust removal and negative pressure dust removal

Operating Principle

The equipment operates on negative pressure suction. The pipeline system connects to woodworking machinery and the filtration system, with the fan creating negative pressure to draw in wood chips and dust particles. In the filtration system:

Airflow passes through the bag filter's diversion bin, reducing velocity
Heavier wood particles fall into the ash bin due to gravity
Lighter dust adheres to the filter bag's outer surface
As dust accumulates, the automatic pulse cleaning system activates to maintain efficiency

Technical Specifications

Parameter	Value	Details
Equipment Type	DMC-500	Material: carbon steel or stainless steel
Filter Area	400m²
Dust Collector Cloth Bag	500PCS	Polyester needle felt covered
Dust Collector Bag Cage	500PCS	8 bars 3.5 wire surface spray treatment
Electromagnetic Pulse Valve	50PCS	24V
Star Discharger	2PCS	Material: Cast iron 1.5KW
Inlet Size	800
Dust Collector Fan	1PCS	45KW
Equipment Dimensions	8580mm × 1780mm × 5500mm
