Portable Mobile Welding Fume Smoke Dust Collector for metallurgy

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE/ISO

Model Number: QD-HY1500D/2200D/3000D

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 500~900/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

mobile industrial dust collector

,

mobile industrial dust collection system

,

welding industrial dust collector

Product_Dimensions:
According To Reality
Product_Voltage:
220V/380V
Product_Name:
Industrial Dust Collector
Product_Weight:
According To Reality
Product_Airflow:
500~1500CFM
Usage:
Dust Removal
Dust Removal:
Pulse Jet Blowing/Manual
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE ISO Certificate
Product_Dimensions:
According To Reality
Product_Voltage:
220V/380V
Product_Name:
Industrial Dust Collector
Product_Weight:
According To Reality
Product_Airflow:
500~1500CFM
Usage:
Dust Removal
Dust Removal:
Pulse Jet Blowing/Manual
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE ISO Certificate

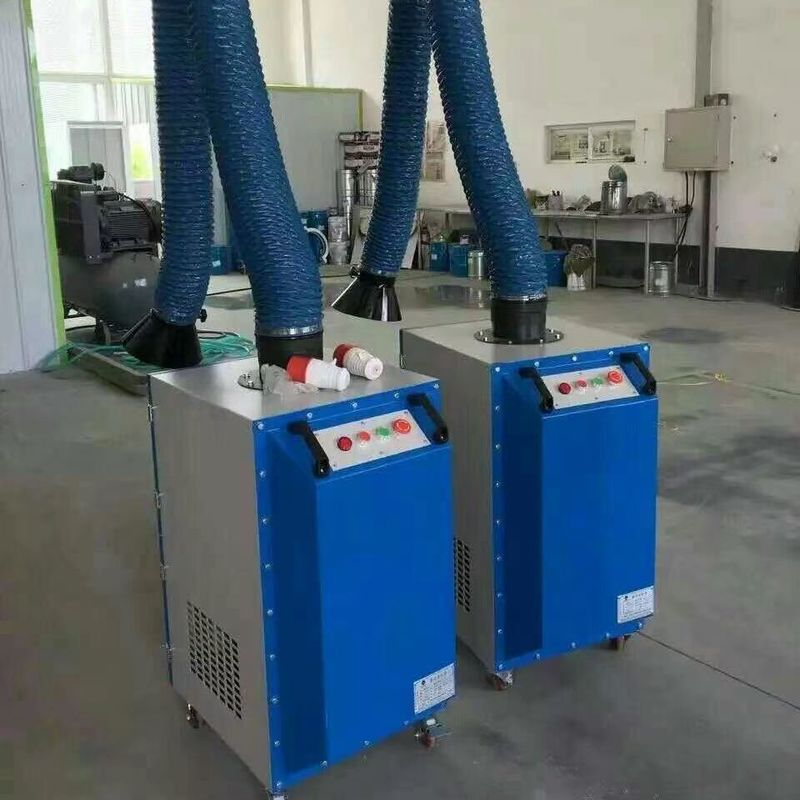

Portable Mobile Welding Fume Smoke Dust Collector for metallurgy

Welding Fume Extractor For Construction And Manufacturing Plant Portable Mobile Welding Fume Smoke Dust Collector for metallurgy 0



1. Introduction

Welding fume dust collector, also known as welding fume hoover, is a kind of industrial environmental protection equipment, mainly used to collect and purify the fumes and dust produced by welding, in order to protect the working environment and workers' health. It absorbs and treats the waste slag and toxic and harmful gases produced in the welding process such as electric welding, shielded welding, argon arc welding, etc. through filter purification to prevent gas pollution, reduce the health infringement of harmful substances to the operating workers, and prevent the occurrence of occupational diseases, such as electric welding pneumoconiosis. The use of welding fume dust collector can significantly improve the quality of the working environment and protect the health and safety of workers.



2. Parameter Description

Take QD-HY1500D model for example:

Air Volume 1500m3/h Power 1.5kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 1 pc
Body Dimension 500*700*1000mm Cleaning Method Manual/Pulse
Shell Thickness 1.4mm The Size of Arm Φ*L160*2000mm, 1 pc
Noise <85 dB Purification Efficiency 99.97%



4. Equipment features
1. With special turbine fan and brand motor, adopting anti-overload circuit to prevent the motor from burning out, with high safety and stable working performance.
2. Manual ash cleaning: manual ash cleaning makes the surface of the filter cartridge clean more thoroughly and cleanly, which can always ensure that the dust collector has a constant suction air volume;
3. The filter cartridge is made of domestic famous brand material, with long service life, it can absorb dust particles of 0.3μm, and has good filtration effect on wet and sticky dust.
4. Using the universal suction arm which can move freely in 360 degrees, it can absorb and remove the smoke from the place where the smoke occurs, which greatly improves the collection rate of the smoke and dust, and ensures the health of the operating personnel.
5. The purifier internal for fire hazards and large particles of slag using three protective measures, so that the purifier's service life is longer, safer and more reliable.
6. Clean air is uniformly guided and dispersed from the direction of the grille-like exhaust outlet, thus reducing the noise to a minimum.



5. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
