Welding Fume Extractor For Construction And Manufacturing Plant

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE/ISO

Model Number: QD-HY1500D/2200D/3000D

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 500~900/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

welding fume and dust extractor

,

plc welding fume extractor

,

3000m3/h welding fume extractor

Power:
1.5~3.0kw
Color:
Blue/gray/customized
Certification:
CE SGS ISO
Voltage:
380V, 50hz(optional)
Air Valume:
1500~3000m3/h
Application:
Various Welding Workplaces
Customized:
Accept
Core Components:
PLC, Motor, Filter Bag
Usage:
Dust Filtration,air Purification
Efficiency:
Dust Removal Efficiency 99%
Core Component:
Fan
Power:
1.5~3.0kw
Color:
Blue/gray/customized
Certification:
CE SGS ISO
Voltage:
380V, 50hz(optional)
Air Valume:
1500~3000m3/h
Application:
Various Welding Workplaces
Customized:
Accept
Core Components:
PLC, Motor, Filter Bag
Usage:
Dust Filtration,air Purification
Efficiency:
Dust Removal Efficiency 99%
Core Component:
Fan

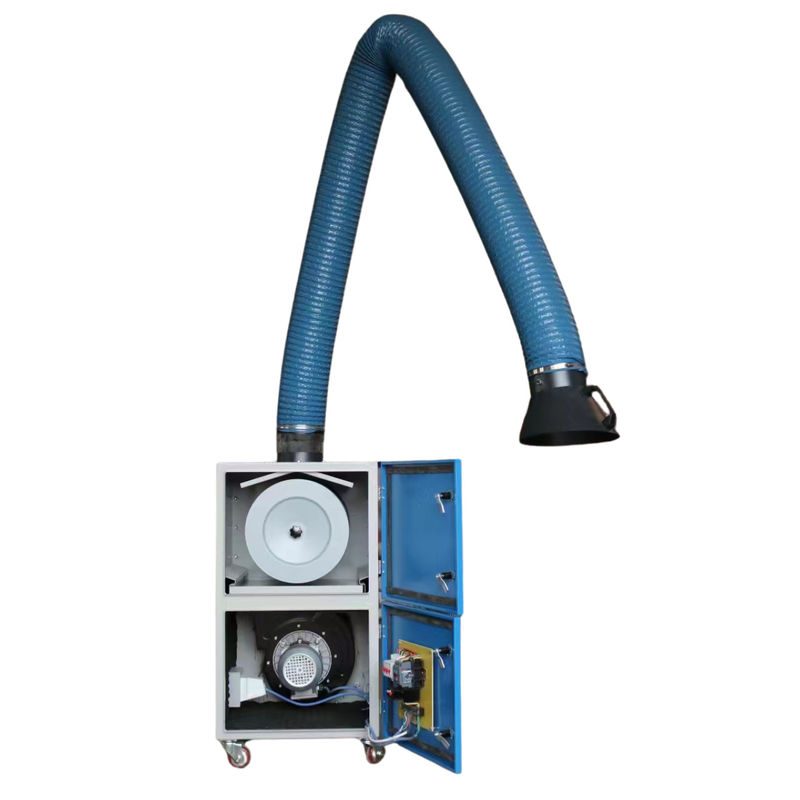

Welding Fume Extractor For Construction And Manufacturing Plant

Welding Fume Extractor For Construction And Manufacturing Plant Welding Fume Extractor For Construction And Manufacturing Plant 0



1. Introduction

Welding fume dust collector, also known as welding fume hoover, is a kind of industrial environmental protection equipment, mainly used to collect and purify the fumes and dust produced by welding, in order to protect the working environment and workers' health. It absorbs and treats the waste slag and toxic and harmful gases produced in the welding process such as electric welding, shielded welding, argon arc welding, etc. through filter purification to prevent gas pollution, reduce the health infringement of harmful substances to the operating workers, and prevent the occurrence of occupational diseases, such as electric welding pneumoconiosis. The use of welding fume dust collector can significantly improve the quality of the working environment and protect the health and safety of workers.



2. Parameter Description

Take QD-HY1500D model for example:

Air Volume 1500m3/h Power 1.5kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 1 pc
Body Dimension 500*700*1000mm Cleaning Method Manual/Pulse
Shell Thickness 1.4mm The Size of Arm Φ*L160*2000mm, 1 pc
Noise <85 dB Purification Efficiency 99.97%



4. Maintenance instructions

The equipment is put into use after repeated experiments for various parts and systems in accordance with the workshop production equipment specifications during processing and under the condition of ensuring production safety and stable operation. The equipment itself has no wearing parts, and no special attention is required during use. All systems are secured at the time of equipment completion. The equipment supplies are provided by our unit and replaced by the workshop operator after the power is turned off.
Follow the following rules when performing repairs and maintenance:
(1)When cleaning the machine shell, replacing parts or changing the working state, you must shut down and unplug the power supply.
(2) Avoid any way to damage the wire, such as squeezing and dragging. And regularly check whether the power cord is damaged, if there is any damage to the power cord, should immediately stop using the machine and be repaired by professionals, replace the damaged power cord and so on.
(3) Machine storage: when the machine is not in use, it should be placed in a dry room to avoid the sun and rain.
(4) The equipment needs to clean the filter cartridge from time to time to prevent clogging, affecting the effect of vacuuming.



5. FAQ

Q: What certificates do you have?
A:CE / ISO / SGS

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea
