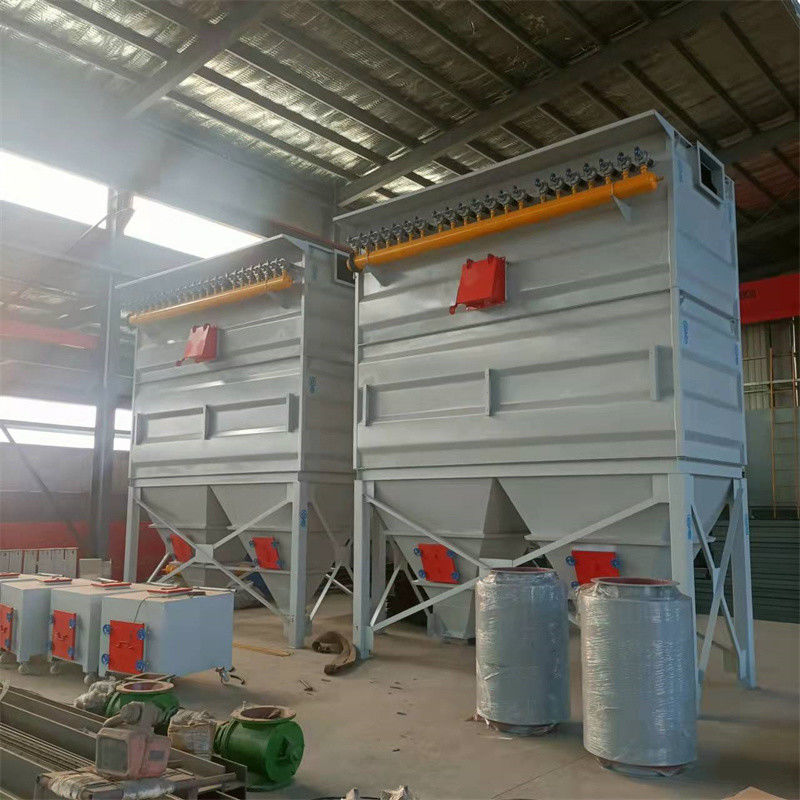

Explosion Proof Cloth Bag Dust Collector Equipment For Coke Screening Building

Product Details

Place of Origin: China HeBei

Brand Name: QiaoDa

Certification: YES

Model Number: QDMC

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3,000 - $50,000

Packaging Details: Communicate with customers

Delivery Time: 7-10 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1-5 units per month

Get Best Price
Highlight:

cloth bag dust collector equipment

,

explosion proof portable dust collector

,

explosion proof dust collector equipment

Structure:
Bag House
Filter Speed:
0.90-1.80 M/min
Air Pressure:
Tailored
Usage:
Dust Filtration,air Purification
Filter Area:
100 -5000 Square Feet
Customized:
Accept
Power:
22KW-160KW
Equipment Material:
Q235
Application:
Used In Coking, Cement, Smelting, Casting, Chemical Industry, Power Plant
Emission:
<50 Mg/ M3
Weight:
According To The Drawing
Airflow:
1000-100000CFM
CE Certification:
YES
Structure:
Bag House
Filter Speed:
0.90-1.80 M/min
Air Pressure:
Tailored
Usage:
Dust Filtration,air Purification
Filter Area:
100 -5000 Square Feet
Customized:
Accept
Power:
22KW-160KW
Equipment Material:
Q235
Application:
Used In Coking, Cement, Smelting, Casting, Chemical Industry, Power Plant
Emission:
<50 Mg/ M3
Weight:
According To The Drawing
Airflow:
1000-100000CFM
CE Certification:
YES
Explosion Proof Cloth Bag Dust Collector Equipment For Coke Screening Building

The XMC type pulse bag dust collector is a new type of high efficiency pulse

dust collector improved on the basis of the national standard Mc-ii type and

the Japanese TBF bag dust collector. It integrates the advantages of various

pulse jet dust collectors in separate chamber reverse blowing, overcomes the

disadvantages of insufficient dust cleaning strength in separate chamber and

uneven distribution of inlet and outlet air, and expands the application range.

The structure of XMC dust collector has its own characteristics, so it improves

the dust collection efficiency, adaptability, and extends the service life of the

filter bag. After many years of production practice, the equipment runs stably,

the maintenance amount is small, and the combination range is large, which

is well received by the majority of users. This series of products can be widely

used in asphalt mixing building crushing, mill, dryer, furnace and other dust and

dust collection system. The material of dust filter bag is generally made of

polyester needle felt, which allows continuous use temperature ≤120℃. For

example, the filter bag is made of Matas high temperature needle felt, which

allows use temperature up to 204℃. This series of dust collector can be

combined with a variety of different specifications of dust collector according to

different specifications of the solenoid valve, this series of dust collector can be

operated under negative pressure or positive pressure, its body structure does

not change, the dust collection efficiency of more than 99.8%, the dust concentration

of the purification gas < 100mg/m3, if the frequency furnace pulse bag dust collector

is used in cold areas or when the flue gas is lower than zero point, it is necessary to

add thermal insulation heating device. The shell has to be changed accordingly.



Off-line pulse dust collector specifications
  1850 2300 2800 3700 4600 5500 6500 1850×2
Filter area
(m2)
1850 2300 2800 3700 4600 5500 5500 3700
Treated air volume(m3/h) 6.2 20.7 25.2 33.3 41.4 49.5 58.5 33.3
Number of filter bags
(PCS)
616 770 924 1232 1540 1848 2156 1232
Filter bag specification φ160×6050
Cleaning method Off-line cleaning

Number of off-line compartments

(pieces)

4 5 6 8 10 12 14 8
Air leakage rate of dust collector
(%)
≤2%

The precipitator inlet is thick

The degree of

(g/m3)

≤20g/m3
Dust collector discharge degree
(g/m3)
50-100g/m3

Number of pulse valves

(pieces)

44 55 66 88 110 132 154 88
Weight (tons) 74 93 112 147 177 212 252 142
Overall dimension
(mm)
11500×
5500×
13800
13800×
5500x
13800
16560×
5500×
13800
22080×
5500×
13800
27600×
5500×
13800
33120×
5500×
13800
38640×
5500×
13800
11500×
10300×
13800
