Downdraft Cleaning Platform Polishing Dust Remover Table Dust Collector

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 840~3000/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

downdraft industrial dust collector

,

downdraft industrial dust collection system

,

polishing industrial dust collector

Dust Removal:
Pulse Jet Blowing
Core Components:
PLC, Fan, Filter Cartridge
Filter Bag Size:
325*600mm
Application:
Chemical Factory/metallurgy/Power Plant
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE,ISO
Main Function:
Removing Industrial Dust
Power:
1.1kw~3kw
Voltage:
380V, 50hz(optional)
Dust Removal:
Pulse Jet Blowing
Core Components:
PLC, Fan, Filter Cartridge
Filter Bag Size:
325*600mm
Application:
Chemical Factory/metallurgy/Power Plant
Dimension(l*w*h):
Depend
After-sales Service Provided:
Online Support
Certification:
CE,ISO
Main Function:
Removing Industrial Dust
Power:
1.1kw~3kw
Voltage:
380V, 50hz(optional)

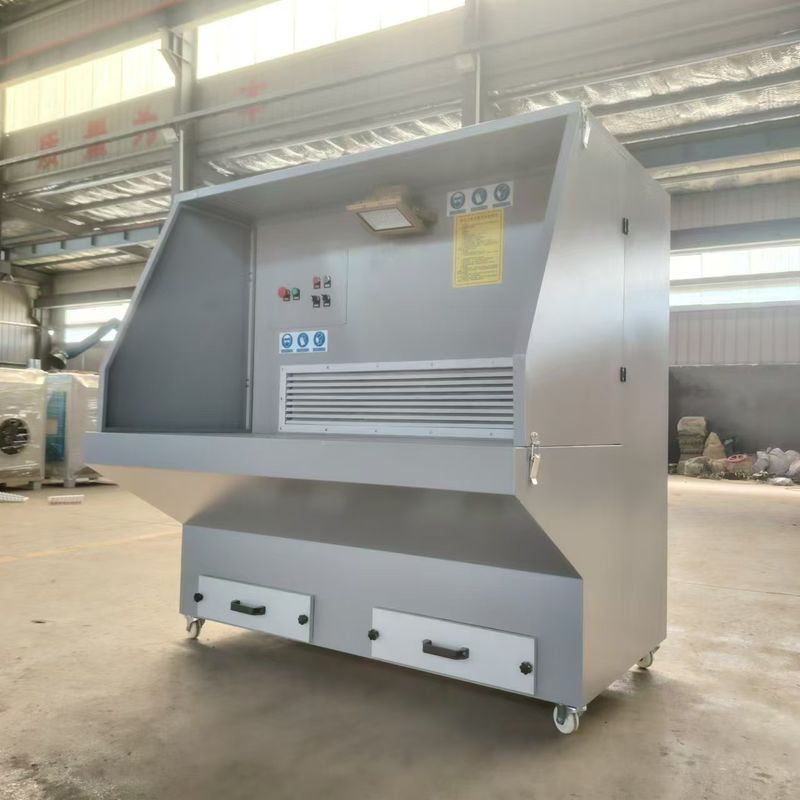

Downdraft Cleaning Platform Polishing Dust Remover Table Dust Collector

Downdraft Cleaning Platform Polishing Dust Remover Table Dust Collector

Downdraft Cleaning Platform Polishing Dust Remover Table Dust Collector 0

Downdraft Cleaning Platform Polishing Dust Remover Table Dust Collector 1



Grinding table is a kind of industrial dust removal equipment which integrates table and dust collector. Grinding table is suitable for small and medium-sized fine processing, irregular parts processing conditions. Without interfering with the daily work of workers, the grinding table can effectively capture the suspended fine dust, providing workers with a clean and healthy working environment.



1. Principle

Dust through the negative pressure generated by the fan through the side exhaust port and the lower exhaust port into the purifier, the airflow into the guide channel, large particles of dust and the guide plate collision, large particles of dust fall into the dust drawer under the action of gravity, containing fine particles of dust into the filtration chamber, dust-containing gases by the outer surface of the filter bag through the filter core, the dust is blocked by the cartridge on the surface of the dust, when the dust is blocked in the cartridge surface continues to be deposited, the filter element through a manual cleaning machine structure to clean. When the dust is blocked and deposited on the surface of the filter element, the filter element can be cleaned by the structure of manual ash cleaning machine, and the dust particles deposited on the filter element can also be dusted by pulse blowing on the filter cartridge, so that the dust particles fall into the dust collection drawer from the surface of the filter element under the vibration, so that the whole surface of the filter element can be cleaned, and the purified air can be discharged by the air ducts and the fans.


The unique tabletop design is perfect, four-side exhaust, built-in dust removal system, fan sound insulation, no need for piping connection, clean air can be discharged in the indoor cycle, reducing energy expenses.


This table can effectively capture fine suspended dust without interfering with worker movement and vision, it is ideal for small to medium sized fine machining and irregular parts. It can be connected to a specialized fume cleaner or to a centralized fume system.





2. Parameter Description

Take QD-DM2000 model for example:

Air Volume 3000m3/h Power 3kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 3 pcs
External Size 2000*1000*800mm Cleaning Method Pulse Valve
Pulse Valve 1.0 inch, 3 pc Noise  <85 dB
Purification Efficiency  99.97%





3. Installation Instructions

(1) It should be used on a firm and flat ground to avoid noise caused by the machine shaking.

(2)When using the machine, please pay attention to whether the voltage of the power supply is compatible with the machine, and do not share a socket with other electrical appliances.

(3) Do not tilt the machine more than 45 degrees when moving or carrying it.

(4)When using the machine, please pay attention to keep a space of not less than 50cm-100cm around the machine.

(5)The operation of the equipment is simple, in the control system of the equipment within the faceplate has been adopted intelligent design, turn on the power switch can start to work, after the operation is completed turn off the power switch.

(6)Wiring three fire one zero.



4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
