Product Details
Place of Origin: China
Brand Name: Qiaoda
Certification: CE
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD 840~3000/pc
Packaging Details: wooden package
Delivery Time: 25~30 days
Payment Terms: L/C, T/T
Supply Ability: 20 pcs/month
Dust Removal: |
Pulse Jet Blowing |
Color: |
Custom |
Core Components: |
PLC, Fan, Filter Cartridge |
Filter Bag Size: |
325*600mm |
Application: |
Chemical Factory/metallurgy |
Condition: |
New |
Dimension(l*w*h): |
Depend |
After-sales Service Provided: |
Online Support |
Dust Removal: |
Pulse Jet Blowing |
Color: |
Custom |
Core Components: |
PLC, Fan, Filter Cartridge |
Filter Bag Size: |
325*600mm |
Application: |
Chemical Factory/metallurgy |
Condition: |
New |
Dimension(l*w*h): |
Depend |
After-sales Service Provided: |
Online Support |

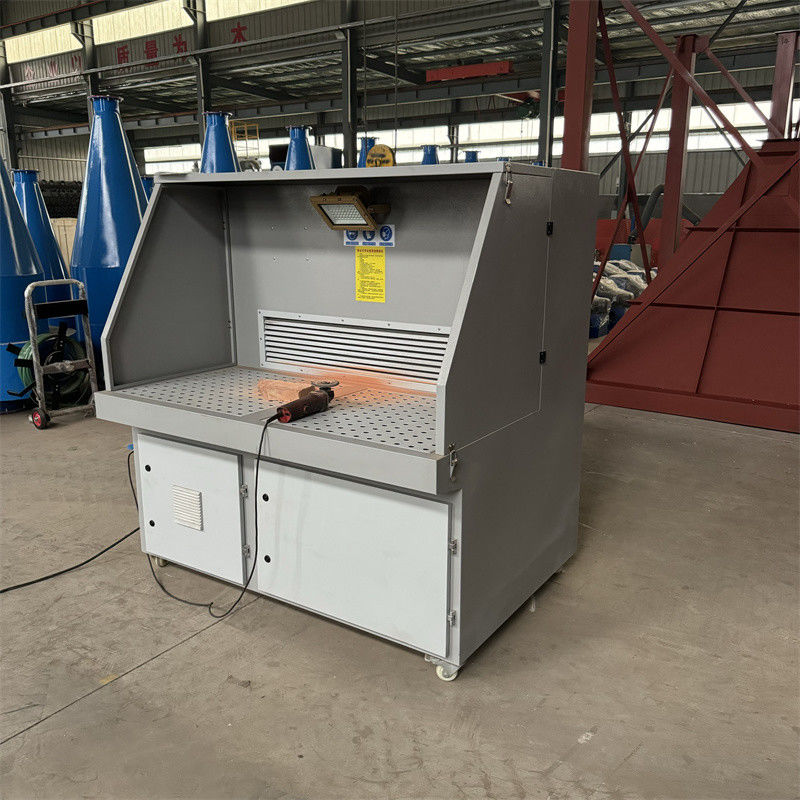

Professional Polishing Table Dust Collector For Chemical Factory
1. Instructions For Use
Before using the equipment, please familiarise the user with the correct way of using the equipment.
The maintenance and repair described in the instruction manual are for the safety of the user and the good operation of the equipment.
The company is not responsible for personal injury and property damage caused by improper use of the product.
Before using this equipment, please read this manual carefully, and place the manual in an easily accessible place for on-site use.
Operation is as follows:
(1) Push the equipment to the work site, the ground level, confirm the connection of the relevant accessories. Step down the fixed casters of the equipment to prevent the equipment from sliding.
(2) After connecting the power supply, open the main power supply of the equipment, and then press the motor run switch, the equipment start indicator light. (If you find a murmur, be sure to turn off the motor, and then turn off the power supply of the equipment, check and adjust the equipment screws are loose, open the box operation should be operated step by step, prohibit the destruction of the internal structure of the equipment)
(3) 72 hours after the normal use of the equipment, in order to ensure the subsequent use of the effect and the service life of the filter cartridge is recommended to clean up the dust attached to the filter cartridge in a timely manner.
(4) After using the equipment for a period of time, you need to clean up the dust in the dust hopper, use the triangle key to open the filter room to clean up the dust hopper.
(5) Equipment with a longer time, the parts of the cleanup also need to pay attention to the parts of the upper air intake warehouse cleanup work, check the dust situation, timely cleaning.
(6) On the left side of the box has a power inlet, ordinary air pressure tube into the automatic locking, pull out by holding the edge of the pull out can be.
2. Parameter Description
Take QD-DM2000 model for example:
Air Volume | 3000m3/h | Power | 3kw |
Power | 380V, 50HZ(optional) | Filter Cartridge | Φ325*500mm, 3 pcs |
External Size | 2000*1000*800mm | Cleaning Method | Pulse Valve |
Pulse Valve | 1.0 inch, 3 pc | Noise | <85 dB |
Purification Efficiency | 99.97% |
3. Maintenance Instructions
Equipment in the process of processing according to the workshop production equipment specifications, in order to ensure production safety and operational stability of the situation for each part and the system for a number of experiments before being put into use. The equipment itself has no wearing parts, no special attention in the use of the process. Each system has been installed with safety guarantee at the completion of the equipment. Consumables are supplied by us and replaced by the workshop operator after switching off the power.
Please observe the following when carrying out repairs and maintenance:
(1) When cleaning the machine casing, replacing parts or changing the working condition, the machine must be switched off and unplugged from the power supply.
(2) Avoid squeezing and dragging or any other way to damage the power cord. And regularly check whether the power cord is damaged, if there is any damage to the power cord, you should immediately stop using the machine and have it overhauled by a professional to replace the damaged power cord, etc.
(3) Storage of the machine: when the machine is not in use, it should be placed in a dry room to avoid sun and rain.
(4) The machine needs to clean the filter cartridge from time to time to prevent clogging and affect the effect of vacuuming.
(5) According to the cleanliness of the environment, replace the filter regularly (generally 3-6 months).
4. FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.
Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.
Q: Do you offer OEM services?
A: Yes. Any required logo is available.
Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.
Q: What certificates do you have?
A:CE / ISO / SGS
