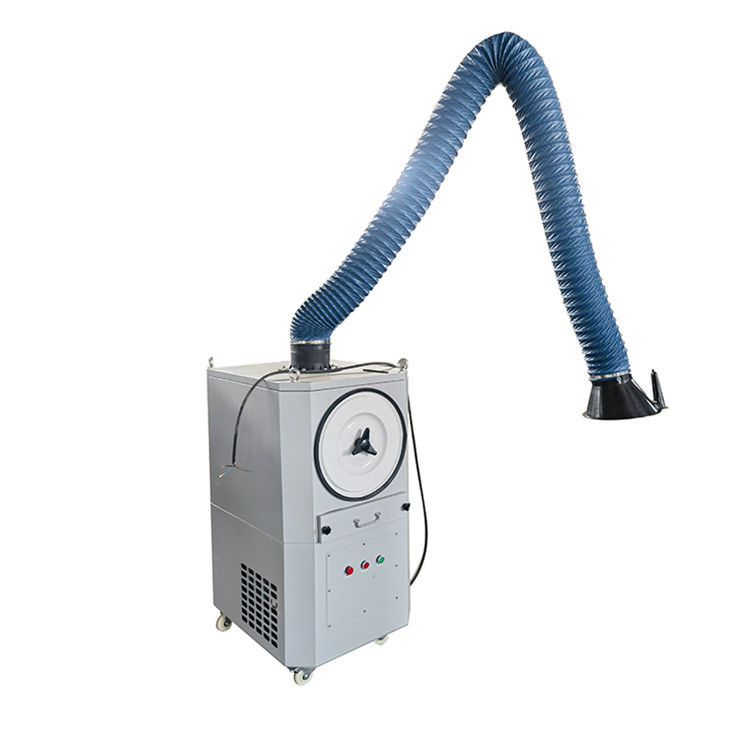

Factory Industrial Mobile Portable Dust Collector Welding Dust Removal Equipment

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE/ISO

Model Number: QD-HY1500/2200/3000

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 622~900/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

mobile portable dust collector

,

welding dust removal equipment

,

portable dust collector welding

Cleaning Type:
Pulse Jet Cleaning/Manual
Power:
1.5~3.0kw
Filtering Material:
Filter Cartridge
Power Source:
Electric
Keyword:
Welding Fume Dust Collector
Color:
Blue/gray/white/customized
Cleaning Type:
Pulse Jet Cleaning/Manual
Power:
1.5~3.0kw
Filtering Material:
Filter Cartridge
Power Source:
Electric
Keyword:
Welding Fume Dust Collector
Color:
Blue/gray/white/customized
Factory Industrial Mobile Portable Dust Collector Welding Dust Removal Equipment

Factory Industrial Mobile Portable Dust Collector Welding Dust Removal Equipment

Factory Industrial Mobile Portable Dust Collector Welding Dust Removal Equipment 0Factory Industrial Mobile Portable Dust Collector Welding Dust Removal Equipment 1

1. Application

The welding smoke purifier produced by the company is a purification device designed for industrial welding smoke and light particles, it is light and flexible, easy to operate, it is also widely used in chemical, electronics, metal processing, tobacco, glass, pharmaceutical, food processing, purification room, hospital and other industries and other places with dust and smoke pollution.



2. Introduction

Through the gravitational action of the fan, the welding smoke and waste gas is sucked into the air inlet of the equipment through the universal dust suction cover. The air inlet of the equipment is equipped with a flame arrester, the spark is blocked by the flame arrester, and the smoke and dust gas enters the settling chamber. By using gravity and updraft, the coarse dust is first directly lowered to the ash hopper, the fine dust is captured by the filter core on the outer surface, and the clean gas is filtered and purified by the filter core. Then the odor is removed by activated carbon adsorption, and finally the clean gas is discharged through the outlet.



Welding smoke purifier can be customized single-arm and double-arm models, can be used alone, can also be used in multiple clusters, easy to install, for the user basically no installation technical requirements. Flexible suction arm is imported PVC steel wire air pipe, corrosion resistance, 120℃ high temperature resistance, cover mouth with air volume control valve. Under the purifier with universal moving casters, can move freely in the factory, fixed, strong adaptability to the workplace.


The gas purified by the welding smoke purifier can be discharged directly into the room to meet the standards, which helps to keep the room closed, maintain room temperature and facilitate operation.



3. Parameter Description

Take QD-HY1500G model for example:

Air Volume 1500m3/h Power 1.1kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*660mm, 1 pc
External Size 8600*800*1230 Cleaning Method Manual/Pulse
Noise <85 dB Purification Efficiency 99.97%





4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
