Industrial Grinding Downdraft Dust Collection Table For Metal Polishing

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: CE

Model Number: QD-DM800/1200/1500/2000/3000

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: USD 840~2100/pc

Packaging Details: wooden package

Delivery Time: 25~30 days

Payment Terms: L/C, T/T

Supply Ability: 20 pcs/month

Get Best Price
Highlight:

downdraft dust collection table

,

industrial dust collection table

,

industrial sanding table dust collection

Main Function:
Removing Industrial Dust
Dust Collector:
Cartridge Filter Dust Collector
Application:
Polish/grinding/welding
Air Valume:
2200~6000m3/h
Main Function:
Removing Industrial Dust
Dust Collector:
Cartridge Filter Dust Collector
Application:
Polish/grinding/welding
Air Valume:
2200~6000m3/h

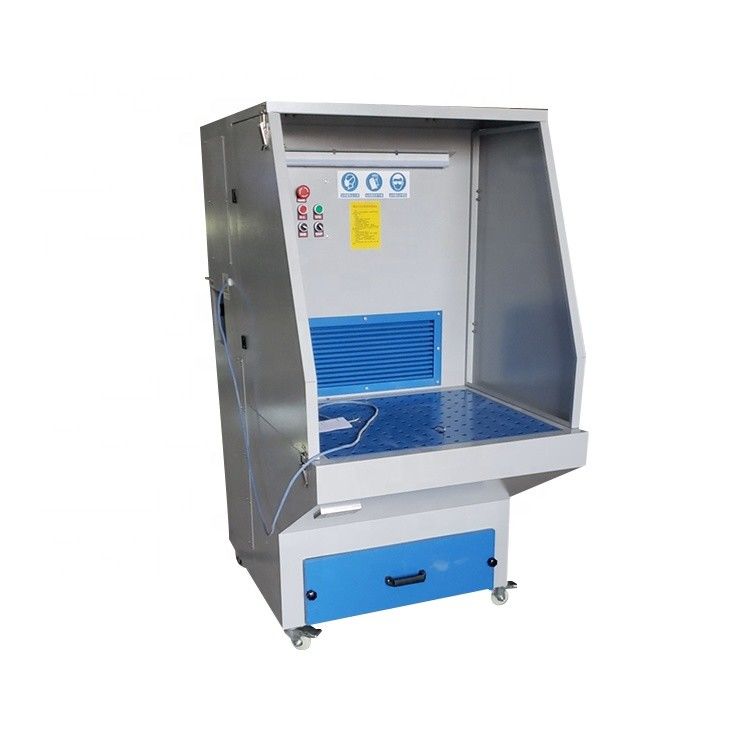

Industrial Grinding Downdraft Dust Collection Table For Metal Polishing

Industrial Grinding Dust Collector Downdraft Table For Metal Polishing

Industrial Grinding Downdraft Dust Collection Table For Metal Polishing 0

Industrial Grinding Downdraft Dust Collection Table For Metal Polishing 1



1. Working Principle

Step 1: Put the metal that needs to be polished onto the work surface.

Step 2: When polishing metal, the dust enters the deflector channel through the negative pressure generated by the fan via the suction openings on the side and below.

Step 3: Large particles of dust collide with the guide plate and fall into the dust collection drawer under the effect of gravity.

Step 4: The dust with fine particles enters the filtering chamber and is blocked on the surface by the filter cartridge. When the dust is continuously deposited on the surface of the filter element, it will be detached from it and fall into the dust collection drawer by pulse blowing.

Step 5: The purified air is discharged.

Industrial Grinding Downdraft Dust Collection Table For Metal Polishing 2

2. Installation Instructions

(1) It should be used on a firm and flat ground to avoid noise caused by the machine shaking.

(2)When using the machine, please pay attention to whether the voltage of the power supply is compatible with the machine, and do not share a socket with other electrical appliances.

(3) Do not tilt the machine more than 45 degrees when moving or carrying it.

(4)When using the machine, please pay attention to keep a space of not less than 50cm-100cm around the machine.

(5)The operation of the equipment is simple, in the control system of the equipment within the faceplate has been adopted intelligent design, turn on the power switch can start to work, after the operation is completed turn off the power switch.

(6)Wiring three fire one zero.



3. Parameter Description

Take QD-DM1500H model for example:

Air Volume 3000m3/h Power 2.2kw
Shell Material  1.5mm cold rolled steel plate Surface Treatment electrostatic spraying
Power 380V, 50HZ(optional) Filter Area 16m2
External Size 1500*1200*1600mm Front Airflow Equalisation Plate 1 set
Main Filter Element 1 set Cleaning Method Automatic
Purification Efficiency  99.97% Noise <85 dB



4. FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A:CE / ISO / SGS
