High Efficiency Industrial Bag Pulse Jet Dust Collector Dust Remover Equipment

Product Details

Place of Origin: China

Brand Name: HeBei QiaoDa

Certification: YES

Model Number: QDMC

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $1200 - $20000

Packaging Details: Mutual consultation

Delivery Time: 15-30 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10-20 units per month

Get Best Price
Highlight:

High Efficiency pulse jet dust collector

,

industrial reverse pulse jet dust collector

,

industrial dust removal equipment

Flaw Resistance:
25kg/m³
Motor Power:
2.2~22kw
Filter Speed:
1.20-1.50 M/min
Filtering Bag:
Tailored
Air Pressure:
0.3-0.8Mpa
Feature:
High Efficiency,Large Dust Collection
Usage:
Industry Dust Collector
Filter Bag Size:
133*2000mm
Graphic Customization:
Accepted
Other Name:
Industrial Welding Dust Collector
Filtration Efficiency:
99.9%
Filter Speed:
1.0M/min
Air Volume:
2280-23230 M3 / H
Odm:
Yes
Flaw Resistance:
25kg/m³
Motor Power:
2.2~22kw
Filter Speed:
1.20-1.50 M/min
Filtering Bag:
Tailored
Air Pressure:
0.3-0.8Mpa
Feature:
High Efficiency,Large Dust Collection
Usage:
Industry Dust Collector
Filter Bag Size:
133*2000mm
Graphic Customization:
Accepted
Other Name:
Industrial Welding Dust Collector
Filtration Efficiency:
99.9%
Filter Speed:
1.0M/min
Air Volume:
2280-23230 M3 / H
Odm:
Yes

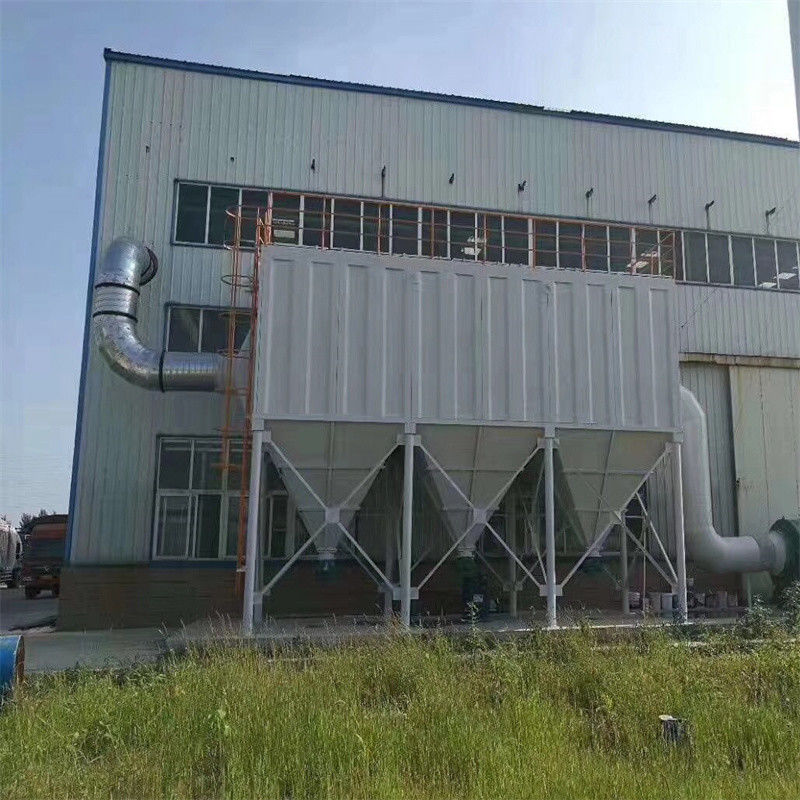

High Efficiency Industrial Bag Pulse Jet Dust Collector Dust Remover Equipment

High Efficiency industrial bag pulse jet dust collector dust remover equipment The

industrial pulse bag dust collector has good dust removal efficiency, large processing

volume, long service life of the filter bag, stable operation, and very convenient

operation. It is an upgrade product of the pulse bag dust collector, and can be used

in the dust removal and purification of mining, metallurgy, building materials, chemical

industry and other industries.



High Efficiency industrial bag pulse jet dust collector dust remover equipment has

six specifications, each specification can be divided into standard with ash bucket

type A and open flange type (no ash bucket) type B two. Its structure is mainly

composed of filter chamber, filter bag, clean gas chamber, ash hopper, ash discharge

valve, pulse jet ash cleaning device, electric control box, box all adopt welding structure.

The access door is sealed with foam rubber strip to protect the dust

collector from air leakage.

Type specification

Filter area

(m2)

Dust concentration

(g/m3)

Filtration velocity

(m/min)

Filtered air volume

(m3/n)

Dust

removal

efficiency

(%)

External dimension

Length × width

× height

(mm)

MC24-Ⅱ 18 <15 2-4 2160-4320 99.5 1090×1678×3667
MC36-Ⅱ 27 <15 2-4 3240-6480 99.5 1490×1678×3667
MC48-Ⅱ 36 <15 2-4 4320-8640 99.5 1890×1678×3667
MC60-Ⅱ 45 <15 2-4 5400-10800 99.5 2290×1678×3667
MC72-Ⅱ 54 <15 2-4 6480-12960 99.5 2690×1678×3667
MC84-Ⅱ 63 <15 2-4 7560-15120 99.5 3090×1678×3667
MC96-Ⅱ 72 <15 2-4 8640-17280 99.5 3690×1678×3667
MC120-Ⅱ 99 <15 2-4 10800-21600 99.5 4450×1678×3667
