840 Roof Tile Trapezoidal Roof Tile Manufacturing Machine Cr12 Carbon Steel

Product Details

Place of Origin: Hebei, China

Brand Name: QiaoDa

Certification: YES

Model Number: 840

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13999

Packaging Details: Mutual agreement

Delivery Time: 20 work days

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 10 units per month

Get Best Price
Highlight:

trapezoidal roof tile manufacturing machine

,

steel roof tile manufacturing machine

,

Cr12 metal roof tile making machine

Material:
Carbon Steel
Compatibility:
Suitable For Various Tile Sizes
Size:
According To The Drawing
Main Structure Of The Machine:
350H Beams
Weight:
About 4500kgs
Material Of The Cutting Blade:
Cr12,Quenched Treatment 58℃-60℃
Processing Precision:
Within 1.0mm
Power Source:
Industrial Electricity
Productivity:
10-15m/min
Dimensions:
9*1.55*1.8m
Voltage:
380V 50Hz 3phases Or As Customer's Need
Control System:
PLC Control (Delta)
Material:
Carbon Steel
Compatibility:
Suitable For Various Tile Sizes
Size:
According To The Drawing
Main Structure Of The Machine:
350H Beams
Weight:
About 4500kgs
Material Of The Cutting Blade:
Cr12,Quenched Treatment 58℃-60℃
Processing Precision:
Within 1.0mm
Power Source:
Industrial Electricity
Productivity:
10-15m/min
Dimensions:
9*1.55*1.8m
Voltage:
380V 50Hz 3phases Or As Customer's Need
Control System:
PLC Control (Delta)
840 Roof Tile Trapezoidal Roof Tile Manufacturing Machine Cr12 Carbon Steel

840 roof plate press tile machine can produce a variety of different appearance of the roof plate

according to the production needs, the molding plate rolled by the machine, the appearance of

flat, uniform corrugations, high utilization rate, high strength, high degree of production automation,

low cost, durable, and high yield. 840 roof plate tile pressing machine is suitable for large and

medium-sized enterprises civil buildings, such as factory buildings, locomotive garages, hangars,

sports venues, exhibition halls, theaters and so on.
840 roof plate press machine placement points:
(1) In order to facilitate the maintenance of the operation, please be more than 50CM away from the wall
(2) Then precision adjustment: the machine frame must be calibrated horizontally to maintain the precision
(3) Secondly, the following matters are important for the installation foundation: A strength must be

able to follow the weight of the machine B base surface must be smooth

Raw Material
feeding width

mm
up layer 1200
down layer 1200

effective width

mm
up layer 1050
down layer 1020
thickness mm 0.3-0.7
Main Roll Forming

Machine
roller material   45#steel plated with chrome
diameter of shaft mm 70

roller station

steps
up layer 16
down layer 16
Main Configuration main motor power kw 5.5

hydraulic station power
Kw 4

control system
PLC

brand
Mitsubishi

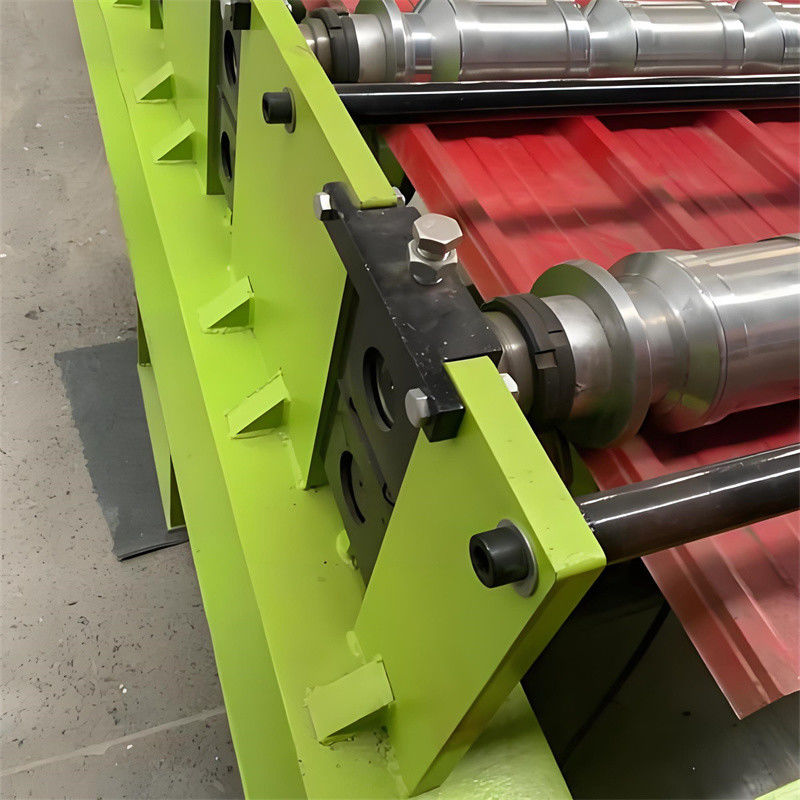

840 Roof Tile Trapezoidal Roof Tile Manufacturing Machine Cr12 Carbon Steel 0
