DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector

Product Details

Place of Origin: China

Brand Name: Qiaoda

Certification: ISO

Model Number: DMF-Z-25/50/75/100

Payment & Shipping Terms

Minimum Order Quantity: 10 pc

Price: negotiated price

Packaging Details: wooden package

Delivery Time: 5~10 day

Payment Terms: D/A, D/P, T/T

Supply Ability: 500 unit/month

Get Best Price
Highlight:

solenoid pulse jet valve diaphragm

,

right angle solenoid pulse jet valve

,

diaphragm pulse jet solenoid valve

Application:
Industrial Dust Collector
Size:
1/1.5/2/2.5/3 Inches
Operation:
Manual
Media:
Air
Valve Type:
Pulse Valve
Temperature Range:
-10~55
Material:
Stainless Steel,Casting,carbon Steel
Working Temperature:
-10~55℃
Product Name:
Pulse Valve/electromagnetic Pulse Valve/solenoid Pulse Valve
Application:
Industrial Dust Collector
Size:
1/1.5/2/2.5/3 Inches
Operation:
Manual
Media:
Air
Valve Type:
Pulse Valve
Temperature Range:
-10~55
Material:
Stainless Steel,Casting,carbon Steel
Working Temperature:
-10~55℃
Product Name:
Pulse Valve/electromagnetic Pulse Valve/solenoid Pulse Valve

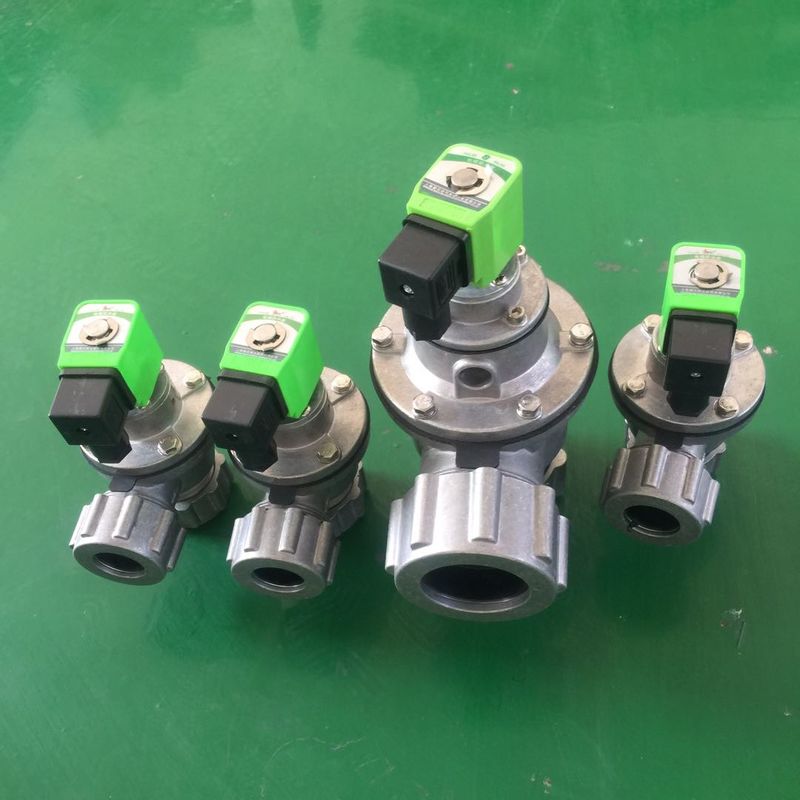

DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector

DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector

1. Introduction

Pulse solenoid valve, also known as diaphragm valve, is a pulse bag filter cleaning and blowing system of compressed air “switch”, controlled by the pulse blowing control instrument output signal, the filter bag row by row (room) blowing cleaning, so that the dust collector resistance is maintained within the set range, in order to ensure that the dust collector's processing capacity and dust collection efficiency.



2. Working Condition

(1) According to the type of power supply, the choice of AC and DC solenoid valves. Generally speaking, AC power supply is convenient.
(2) in a corrosive or explosive environment should be prioritized according to the safety requirements of the selection of corrosion-resistant.
(3) If the environmental space is restricted, please select the multi-function solenoid valve, because it eliminates the bypass and three manual valves and easy online maintenance.
(4) The power supply voltage fluctuation is usually used for AC +%10%. -15%, DC allows ±%10 or so, such as overshooting, must take measures to stabilize the voltage or special order requirements.
(5) The maximum and minimum temperature of the environment should be selected within the permissible range, if there is excessively poor need to make special orders.
(6) Electromagnetic pulse valve power conditions.
(7) The environment is often vibration, bumps and shocks and other occasions should be selected special varieties, such as marine solenoid valve.
(8) Voltage specifications with as much as possible to prioritize the selection of AC220V.DC24V.
(9) high relative humidity and water droplets in the environment and rain and other occasions, should choose waterproof solenoid valve.
(10) should be selected according to the power capacity of the rated current and power consumption. Must pay attention to AC start VA value is high, in the capacity is not enough should be preferred to use indirectly guided solenoid valve.

DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector 0DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector 1DMF-Z-25 Right Angle Solenoid Pulse Jet Valve Diaphragm Dust Collector 2



3. Parameter

Model DMF-Y DMY-Z DMY-T DMF-2L-B-G3/4
Working Pressure 0.3~0.6MPa 0.3~0.6MPa 0.3~0.6MPa 0.4~0.6MPa
Working Medium clean air clean air clean air clean air
Voltage DC24V/AC220V DC24V/AC220V DC24V/AC220V DC24V/AC110/220V
Power 800/60MA 800/60MA 800/60MA 0.8/0.46/0.23A
Working Environmental Temperature -10℃ to 55℃, air relative humidity not more than 85%.
Diaphragm life 1,000,000 times or 2 to 3 years



4. Q&A

Q: Are you a trading company or a manufacturer?
A: We are a manufacturing company. We are a professional manufacturer of dust removal and conveying equipment with more than 20 years of production.

Q: Where is your factory located?
A: The factory is located in Hebei, China, 50 minutes by rail from Beijing.

Q: Do you offer OEM services?
A: Yes. Any required logo is available.

Q: What is the production capacity of your company?
A: Our factory covers an area of more than 20,000 square meters and produces 2,000 machines a year.

Q: What certificates do you have?
A: ISO / SGS
