Mining Machinery Cone Crusher Bag Industrial Dust Collector Discharge Standard

Name: Mining Machinery Cone Crusher Bag Industrial Dust Collector Discharge Standard
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: LMC-1000
Price: 51.00 USD
Availability: InStock

Product Details

Place of Origin: China HeBei

Brand Name: HeBeiQiaoDa

Certification: YES

Model Number: LMC-1000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3,000 - $100,000

Packaging Details: Consultation with customers

Delivery Time: 10-30 day of work

Payment Terms: L/C, ,T/T, Western Union, MoneyGram

Supply Ability: 5 to 20 units per month

Get Best Price

Product Details

Product Description

Highlight:
                                                Standard Industrial Dust Collector, Mining Machinery Industrial Dust Collector, Cone Crusher Industrial Dust Collector

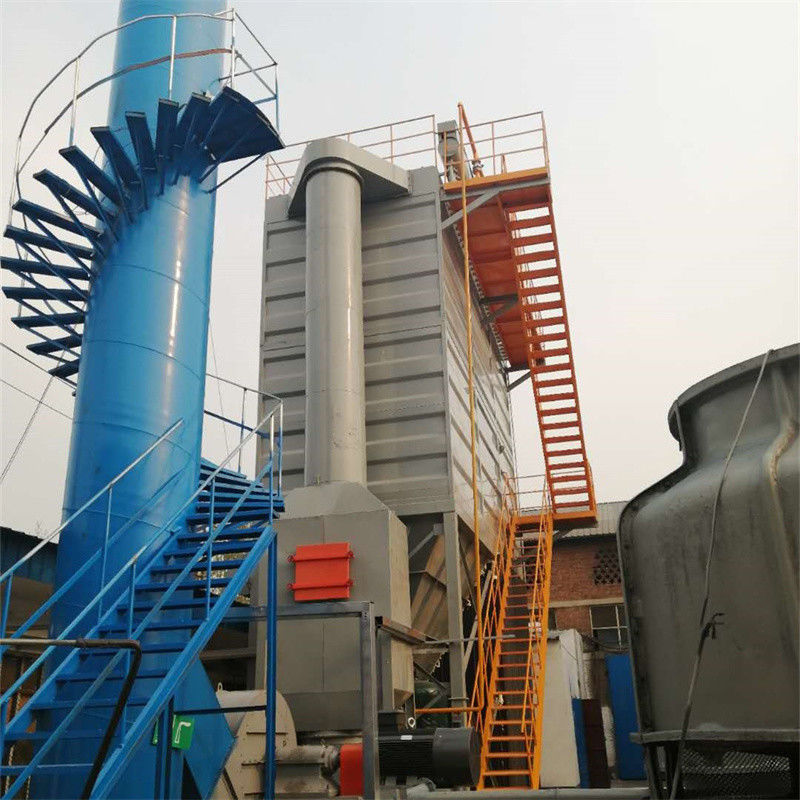

Mining Machinery Cone Crusher Bag Industrial Dust Collector Discharge Standard

Cone crusher will need to have abag dust collector,when working. When the material,passes through the cone,it will produce alarge amount of dust. This dust,will pass through the pipe into the bag,dust collector. Inside the dust collector,there are multiple filter bags,and the dust will be filtered on the filter bag.Clean air is discharged from the top of the dust collector. This dust removal method can effectively reduce dust pollution and improve the working environment of the factory!

Parameter/Model		PPC32-3	PPC32-4	PPC32-5	PPC32-6	PPC64-4	PPC64-5	PPC64-6	PPC64-7	PPC64-8
Treated air volume(m2/h)		6900	8030	11150	13390	17800	22300	26700	31200	35700
Filtration velocity(m/min)		1.2-2.0(Select different net filtration wind speed according to different dust points)
Total filtration area(m2)		93	124	155	186	248	310	372	434	496
Net filtration area(m2)		62	93	124	155	186	248	310	372	434
Number of dust collector chambers (PC)		2	4	5	6	4	5	6	7	8
Total filter bags (PCS)		96	128	160	192	256	320	384	448	512
Dust collector resistance(Pa)		1470-1770
Dust concentration of imported gas(g/m3)		< 200		< 1000		<1000
Outlet gas dust concentration(mg/m3)		<30				<30
Dust collector gas under negative pressure(Pa)		5000				5000
Soot cleaning Compressed air	stress(Pa)	(5-7)X1000
Soot cleaning Compressed air	Air consumption (m3/min)	0.27	0.37	0.46	0.55	1.2	1.5	1.8	2.1	2.4
Impulse valve	Quantity (PCS)	3	4	5	6	4	5	6	7	8
Impulse valve	Size (inches)	1.5				2.5
Lift valve	Quantity (PCS)	3	4	5	6	4	5	6	7	8
Lift valve	specification(mm)	Lift valve diameter Ø460 cylinder diameter Ø63				Lift valve diameter Ø595 Cylinder diameter Ø100
Rigid impeller feeder		Feed hole300X300mm 　high400m 　Speed 30.31r/min deceleration motor Power 1.1KW output 24m3/h
Screw conveyor	specification					Diameter Ø300 Output 30m3/h (filling rate Ø=0.7)
Screw conveyor	Gear motor					Model XWD2.2--5--1/43. Power 2.2KW
Air transfer chute
Ash cleaning program controller		The input and output voltage are 220V, the controller is supplied by the manufacturer, see the controller manual for details
Filter bag specifications and materials		Diameter X length Ø130X2450mm, polyester needle felt weight 500g/m3, operating temperature 120 degrees (suitable filtration materials can be selected according to the actual mining temperature and flue gas properties)
Area of insulation layer(m2)		26.5	34	41	48.5	70	94	118	142	166
Total equipment (Approximate value, excluding insulation) (kg)		2400	3400	4400	5400	6900	8300	9700	11100	1250
